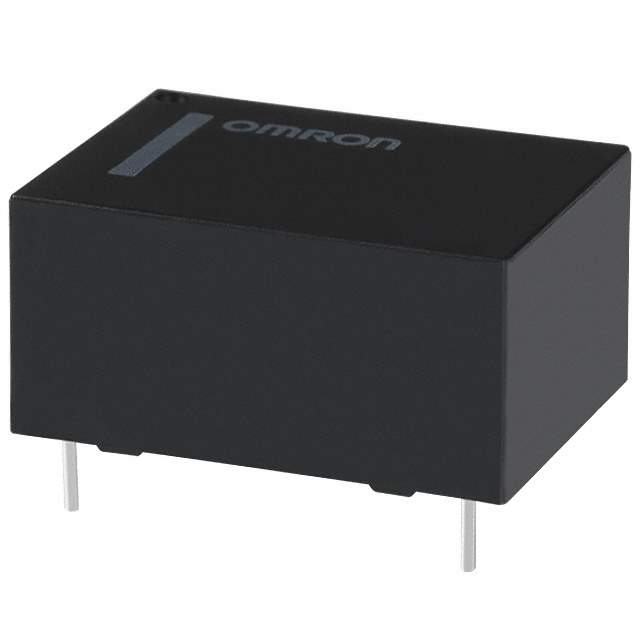

The Omron G5CA-1A-H DC24 is a power relay designed for switching higher current loads. It's a single-pole, single-throw (SPST) relay with a coil voltage of 24VDC. This relay is commonly used in a variety of applications requiring reliable switching of AC or DC power.

Applications

• Industrial control systems: Switching power to motors, heaters, and other industrial equipment.
• HVAC systems: Controlling compressors, fans, and other HVAC components.
• Power supplies: Switching power to different circuits or devices.
• Lighting control: Controlling lighting circuits in commercial and residential buildings.
• Automotive applications: Used in various automotive systems for switching power to lights, motors, and other components.

Features

• SPST contact configuration: Provides a simple on/off switching function.
• 24VDC coil voltage: Compatible with a wide range of control systems.
• High current capacity: Capable of switching high current loads.
• Compact size: Allows for easy integration into space-constrained environments.
• Long lifespan: Provides reliable performance over an extended period.

Benefits

• Reliable switching: Ensures consistent and dependable switching performance.
• High durability: Withstands demanding operating conditions.
• Easy to use: Simple and straightforward to integrate into existing systems.
• Cost-effective: Offers a competitive price point for power switching applications.
• Versatile: Suitable for a wide range of applications.

Technical Specifications

The G5CA-1A-H DC24 has a contact rating of typically 10A at 250VAC or 30VDC. The coil resistance and operate/release times can be found in the Omron datasheet. The relay is designed for PCB mounting or socket mounting. Isolation voltage and other safety-related specifications are also detailed in the datasheet.
