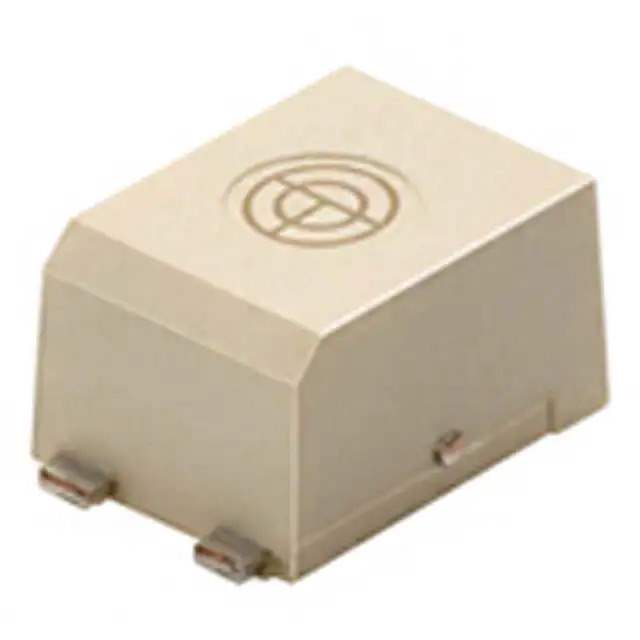

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Omron
Series G3VM
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.15VDC
Voltage - Load 0 V ~ 60 V
Load Current 400 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style SMD (SMT) Tab
Package / Case 4-SMD (0.128", 3.25mm)
Supplier Device Package 4-USOP
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 872521-G3VM-61PR
Ultra Librarian 3D Model Ultra Librarian G3VM-61PR CAD Model

Description

The 872521-G3VM-61PR is a solid state relay from Omron's G3VM series. Bold the product name (e.g., BAV99S,135 → 872521-G3VM-61PR) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Series: G3VM
  • Mounting Type: Surface Mount Device
  • Termination Style: SMD (SMT) Tab
  • Voltage - Input: 1.15VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO
  • On-State Resistance (Max): 1.5 Ohms
  • Load Current: 400 mA
  • Voltage - Load: 0 V to 60 V
  • Package: 4-SMD
  • Supplier Device Package: 4-USOP
  • Status: Obsolete
  • Moisture Sensitivity Level (MSL): 3 (168 Hours)
