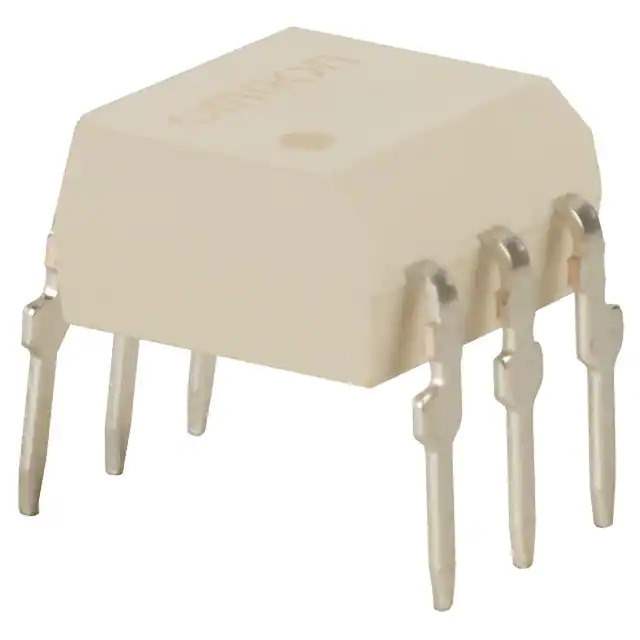

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Omron
Series G3VM
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.4VDC
Voltage - Load 0 V ~ 400 V
Load Current 150 mA
On-State Resistance (Max) 12 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN OBSOLETE
Win Source Part Number 872514-G3VM-4N
Ultra Librarian 3D Model Ultra Librarian G3VM-4N CAD Model

Description

The 872514-G3VM-4N is a solid state relay from Omron's G3VM series. Bold the product name (e.g., BAV99S,135 → 872514-G3VM-4N) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Series: G3VM
  • Termination Style: PC Pin
  • Packaging: Tube
  • Voltage - Input: 1.4VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO
  • On-State Resistance (Max): 12 Ohms
  • Load Current: 150 mA
  • Voltage - Load: 0 V to 400 V
  • Mounting Type: Through Hole
  • Package: 6-DIP
  • Status: Obsolete
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
