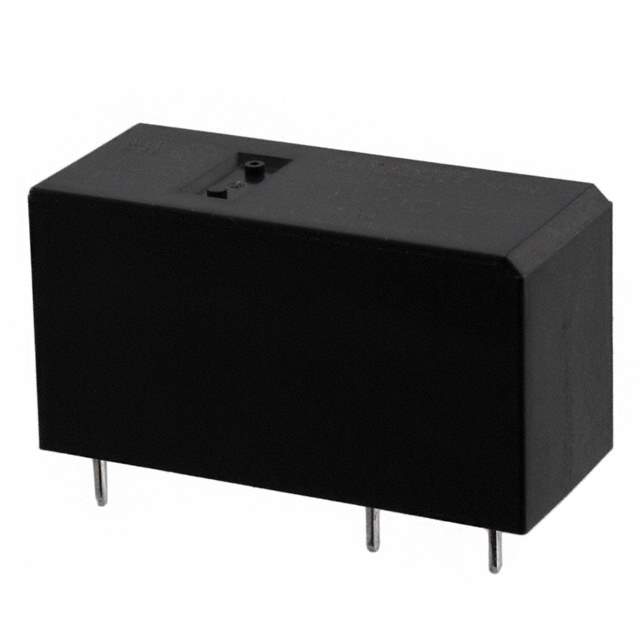

G2RL-1-E-DC5 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1-E-DC5

Part No G2RL-1-E-DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description General Purpose Relay, G2RL Series, Power, Non Latching, SPDT, 5 VDC, 12 A RoHS Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package DIP
Coil Current 80 mA
Coil Power 400 mW
Coil Resistance 62.5 Ω
Coil Type Non-Latching
Coil Voltage (DC) 5 V
Contact Current Rating 16 A
Contact Material Cadmium, Silver
Height 15.7 mm
Length 29 mm
Max Current Rating 16 A
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 440 V
Max Voltage Rating (DC) 300 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 8
Operate Time 15 ms
Power Consumption 400 mW
Radiation Hardening No
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Termination PC Pin
Throw Configuration SPDT
Weight 12 g
Width 12.7 mm
Win Source Part Number 1178032-G2RL-1-E-DC5
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2RL-1-E-DC5 CAD Model

Description

The G2RL-1-E-DC5 by Omron is a general-purpose power relay that is designed for over 2 amps.

  • Relay Type: General-Purpose, Power Relay
  • Contact Form: SPDT
  • Contact Current Rating: 16 A
  • Coil Voltage: 5 VDC
  • Coil Resistance: 62.5 Ω
  • RoHS Compliant: Yes
  • Mounting Type: Through-Hole
  • Win Source Part Number: 1178032-G2RL-1-E-DC5
