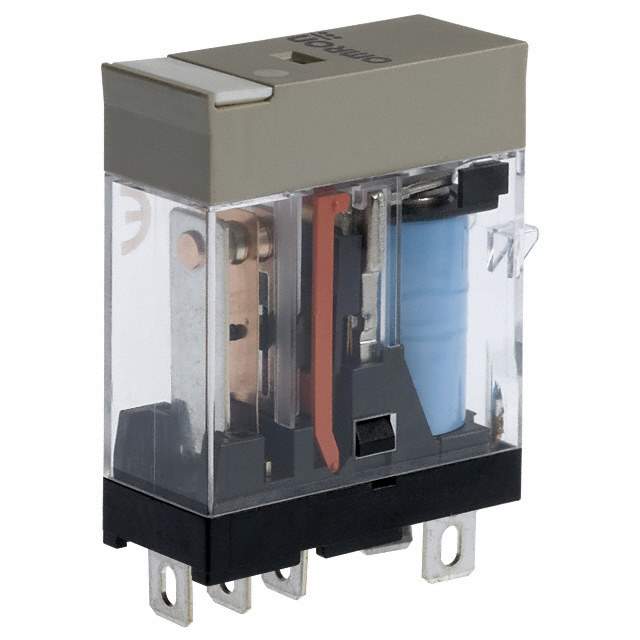

G2R-1-SN DC24(S) Real Image
Same model may have multiple batches, images only for reference.

G2R-1-SN DC24(S)

Part No G2R-1-SN DC24(S)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
Datasheet
G2R-1-SN DC24(S) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series G2RS
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 440VAC, 125VDC - Max
Coil Current 21.6 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 16.8 VDC
Must Release Voltage 3.6 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number G2R
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names Z2234,G2R-1SN-DC24(S),G2R-1-SN-DC24(S),G2R1SNDC24S
Standard Package 100
Win Source Part Number 1060141-G2R-1-SN DC24(S)
Ultra Librarian 3D Model Ultra Librarian G2R-1-SN DC24(S) CAD Model

Description

The 1060141-G2R-1-SN DC24(S) is a power relay manufactured by Omron Automation and Safety.

  • Contact Form: It has a contact form of SPDT (1 Form C) and a contact rating (current) of 10 A.
  • Coil Voltage: The 1060141-G2R-1-SN DC24(S) has a coil voltage of 24VDC and a coil resistance of 1.1 kOhms.
  • Coil Type: It is a non-latching type of coil and has a must operate voltage of 16.8 VDC and a must release voltage of 3.6 VDC.
  • Application: The 1060141-G2R-1-SN DC24(S) is suitable for use in electronic devices that require a power relay.
