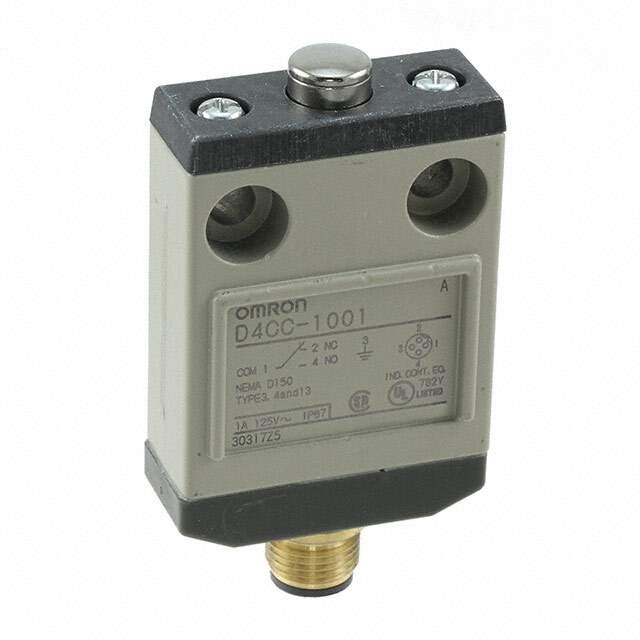

D4CC-1001 Real Image
Same model may have multiple batches, images only for reference.

D4CC-1001

Part No D4CC-1001
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 125V / Switch Limit N.O./N.C. SPDT Top Pin Plunger Connector Receptacle 1A 125VAC 11.77N Linear Screw Mount
Datasheet
D4CC-1001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Automation and Safety
Series D4CC
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 1A (AC)
Voltage Rating - AC 125V
Actuator Type Round (Pin Plunger)
Mounting Chassis Mount
Termination Style Connector
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force, Torque 1200gf
Release Force 450gf
Pretravel 0.071" (1.8mm)
Differential Travel 0.008" (0.2mm)
Overtravel 0.118" (3.0mm)
Operating Position 0.618" (15.7mm)
Mechanical Life 10,000,000 Cycles
Electrical Life 200,000 Cycles
Operating Temperature Range -10°C ~ 70°C
Win Source Part Number 769646-D4CC-1001
Popularity Medium
Supply and Demand Status Limited
Family Name D4CC
Introduction Date June 01, 2006
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian D4CC-1001 CAD Model

Description

The Omron Automation and Safety D4CC series SPDT switch is a high-quality electronic component that is designed for use in a wide range of applications.

  • Circuit: SPDT
  • Current Rating: 1A (AC)
  • Voltage Rating: 125V (AC)
  • Ingress Protection: IP67 (Dust-tight, Waterproof)
  • Operating Temperature: -10°C to 70°C
  • Actuator Type: Round Pin Plunger
  • Electrical Life: 200,000 cycles
  • Mounting Type: Chassis Mount
