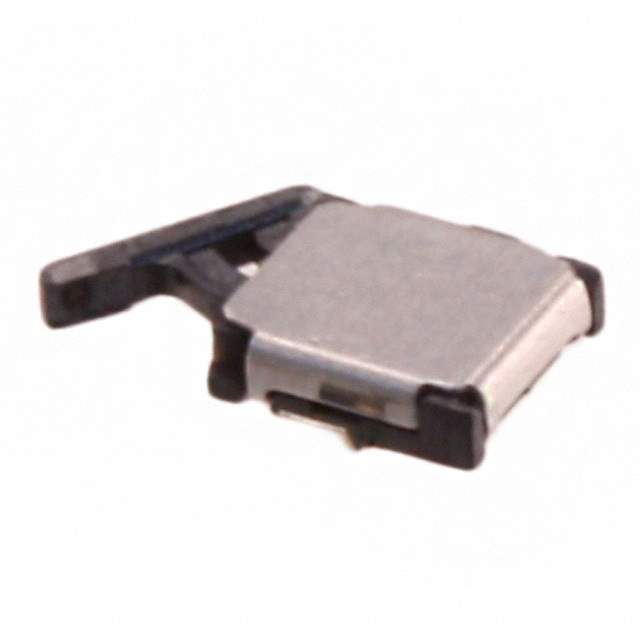

D3SH-B1L Real Image
Same model may have multiple batches, images only for reference.

D3SH-B1L

Part No D3SH-B1L
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NC 1MA 5V / Surface Mount Detection Switch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5V
Actuator Type Angled Toggle (Detector)
Mounting Style Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Features Board Guide, Left Operating Lever
Operating Force 31gf
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.197" (5.0mm)
Electrical Life 100,000 Cycles
Mechanical Life 150,000 Cycles
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805261-D3SH-B1L
Ultra Librarian 3D Model Ultra Librarian D3SH-B1L CAD Model

Description

The Omron Electronics Inc-EMC Div 805261-D3SH-B1L is a surface mount, right-angle switch manufactured by Omron Electronics Inc-EMC Div.

  • Circuit: SPST-NC
  • Actuator Type: Angled Toggle (Detector)
  • Voltage Rating: 5V DC
  • Switch Function: on-mom
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 150,000 cycles
  • Operating Force: 31gf
  • Operating Position: 0.197 inches (5.0mm)
  • Operating Temperature: -25°C to 85°C
  • Manufacturer Pack Quantity: 1,000
  • Current Rating (Amps): 1mA (DC)
