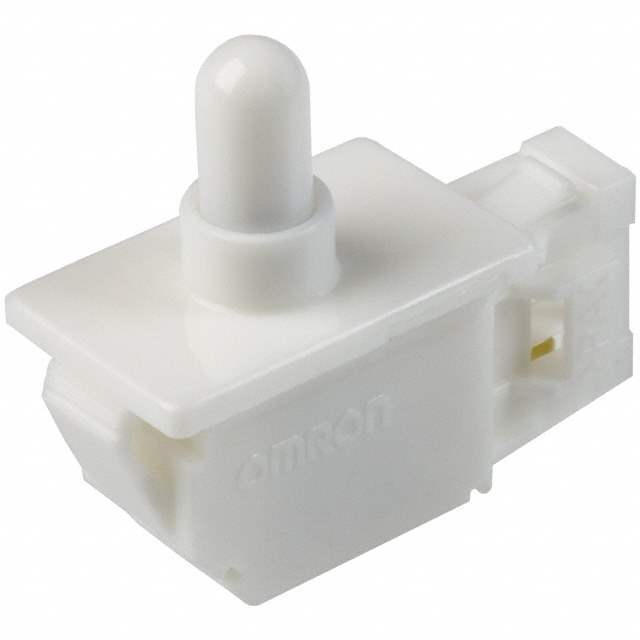

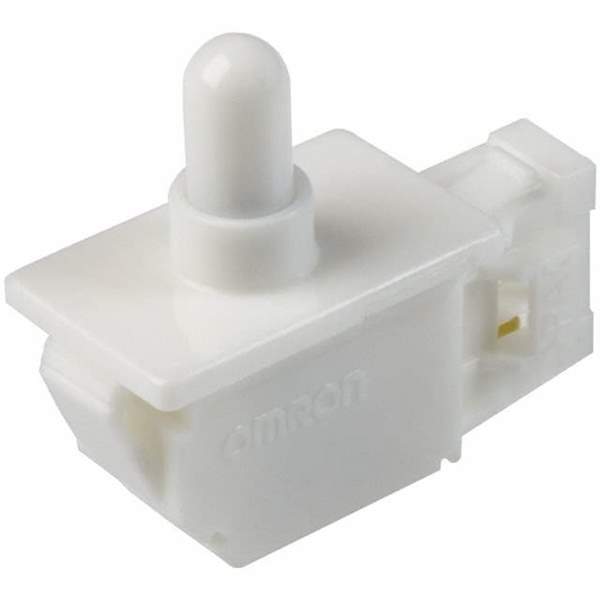

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309760-D3D-111
Category Switches >Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Part Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC)
Voltage Rating - AC 125 V
Actuator Type Overtravel Plunger
Mounting Type Panel Mount, Snap-In
Ultra Librarian 3D Model Ultra Librarian D3D-111 CAD Model

Description

  • Choose from plunger or lever as the actuator type.
  • Crimp-type connector offers an easy wiring work and efficiency.
  • Snap-fit attachment for easy installation.
  • Providing two colors, black and white.
  • Mainly used for refrigerators.
