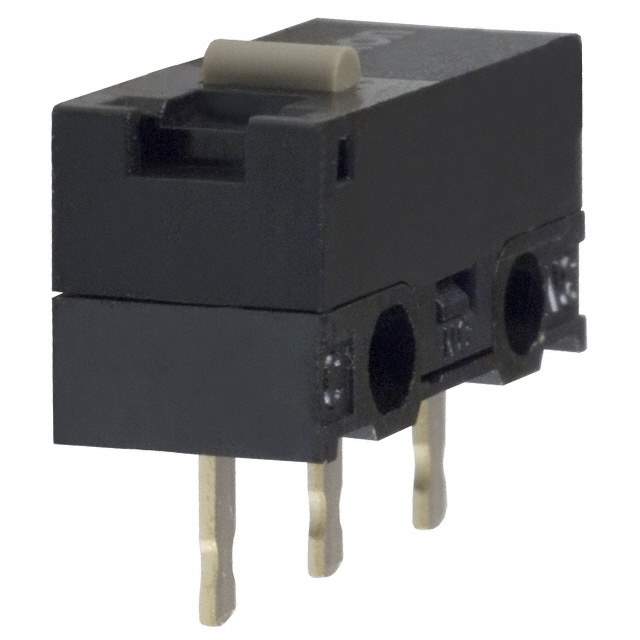

D2F-5 Real Image
Same model may have multiple batches, images only for reference.

D2F-5

Part No D2F-5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT Through Hole
Datasheet
D2F-5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 20gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.010" (0.25mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.217" (5.5mm)
Electrical Life 10,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number D2F5,Z8845
Standard Package 1,000
Win Source Part Number 1323848-D2F-5
Ultra Librarian 3D Model Ultra Librarian D2F-5 CAD Model

Description

The D2F-5 limit switch from Omron is a high-quality switch that is designed to be used in a variety of applications.

  • Circuit Configuration: SPDT
  • Actuator Type: round (pin plunger)
  • Operating Force: 150gf
  • Release Force: 20gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.005" (0.12mm)
  • Overtravel: 0.010" (0.25mm)
  • Operating Position: 0.217" (5.5mm)
  • Voltage Rating: 250 V AC
  • Current Rating: 5A (AC)
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 10,000 cycles
  • Operating Temperature Range: -40°C to 85°C
  • Ingress Protection Rating: IP40
  • Mounting: through-hole mounted
  • Packaging: bulk
  • Standard Package: 1,000
