Same model may have multiple batches, images only for reference.

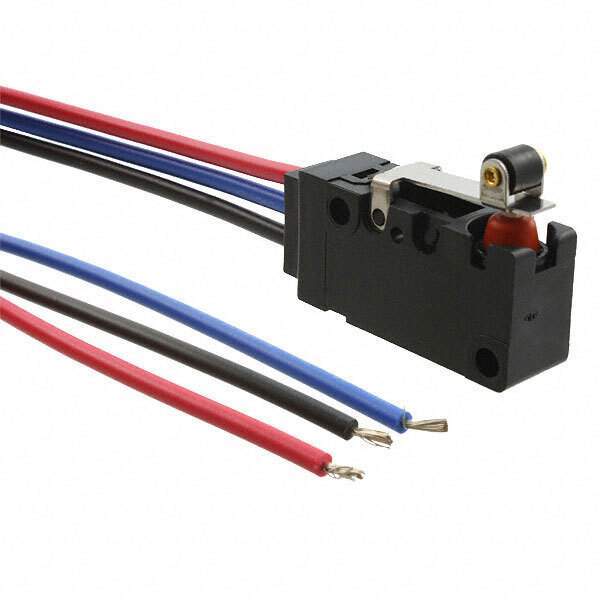

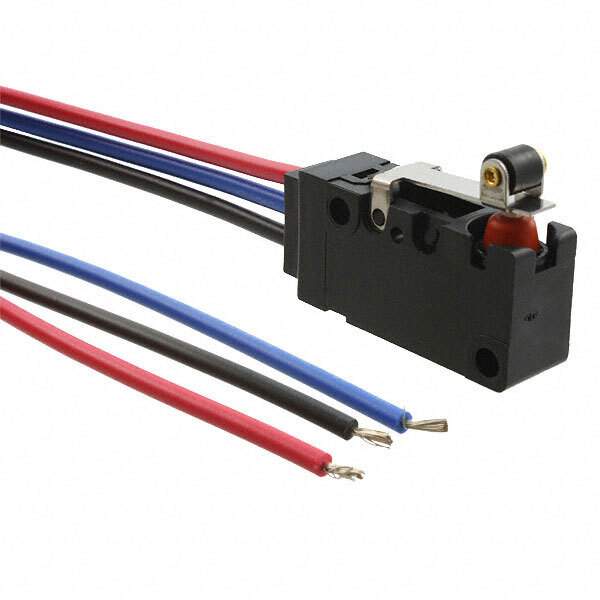

D2VW-5L2A-1M Real Image
Same model may have multiple batches, images only for reference.

D2VW-5L2A-1M

Part No D2VW-5L2A-1M
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2VW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 230gf
Release Force 20gf
Pretravel 0.063" (1.6mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.815" (20.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number D2VW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2VW5L2A1M52,2266-D2VW-5L2A-1M,D2VW5L2A1M
Standard Package 10
Win Source Part Number 1131473-D2VW-5L2A-1M
Ultra Librarian 3D Model Ultra Librarian D2VW-5L2A-1M CAD Model

Description

The D2VW-5L2A-1M is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Roller
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 230gf
  • Release Force: 20gf
  • Pretravel: 0.063" (1.6mm)
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.030" (0.76mm)
  • Operating Position: 0.815" (20.7mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C ~ 85°C
  • Supply and Demand Status: Balanced
