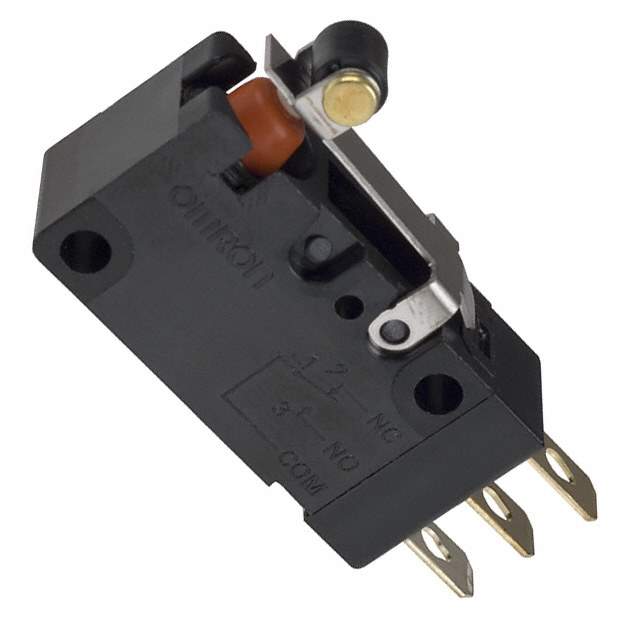

D2VW-01L2A-1HS Real Image
Same model may have multiple batches, images only for reference.

D2VW-01L2A-1HS

Part No D2VW-01L2A-1HS
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2VW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Features Resin Roller
Operating Force 230gf
Release Force 20gf
Pretravel 0.063" (1.6mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.815" (20.7mm)
Electrical Life 1,000,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number D2VW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2VW01L2A1HS,D2VW-01L2A-1HS-ND,SW864
Standard Package 100
Win Source Part Number 1000169-D2VW-01L2A-1HS
Ultra Librarian 3D Model Ultra Librarian D2VW-01L2A-1HS CAD Model

Description

The Omron Electronics Inc-EMC Div D2VW Series Limit Switches are a reliable solution for your electronic needs. These switches are designed to meet the needs of various electronic applications.

  • Win Source Part Number: 1000169-D2VW-01L2A-1HS
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Roller
  • Feature: Resin Roller
  • Voltage Rating: 125 V AC and 30 V DC
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Operating Force: 230gf
  • Release Force: 20gf
  • Pretravel: 0.063 inches
  • Differential Travel: 0.020 inches
  • Overtravel: 0.030 inches
  • Operating Position: 0.815 inches
  • Mounting Type: Chassis Mount
  • Temperature Range: -40 degrees Celsius to 85 degrees Celsius
  • Manufacturer: Omron Electronics Inc-EMC Div
