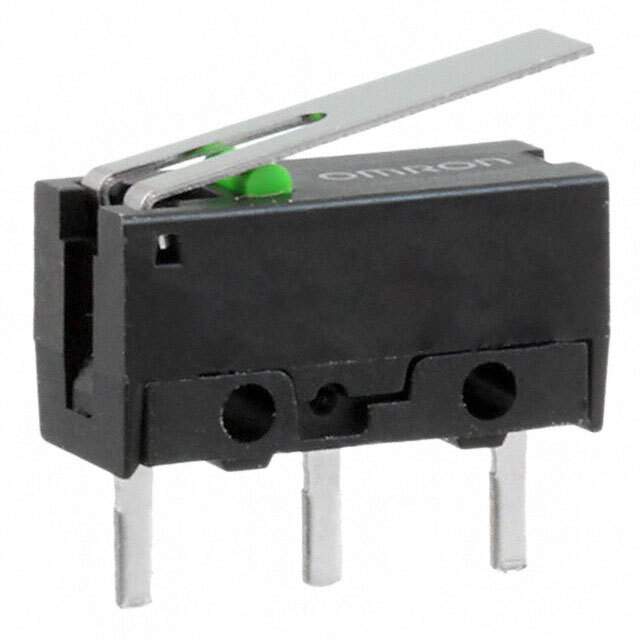

D2FS-FL-N Real Image
Same model may have multiple batches, images only for reference.

D2FS-FL-N

Part No D2FS-FL-N
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 100MA 6V / Switch SPST-NO Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 6 V
Actuator Type Lever, Straight
Mounting Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 25gf
Release Force 2.039gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -20°C ~ 70°C
Operating Position 0.328" (8.3mm)
Electrical Life 10,000 Cycles
Mechanical Life 100,000 Cycles
Base Product Number D2F
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number SW1982,D2FSFLN
Standard Package 1,000
Win Source Part Number 1323777-D2FS-FL-N
Ultra Librarian 3D Model Ultra Librarian D2FS-FL-N CAD Model

Description

The D2FS-FL-N from Omron is a limit switch that has a SPST-NO circuit and an operating force of 25gf.

  • Circuit: SPST-NO
  • Operating Force: 25gf
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 10,000 cycles
  • Release Force: 2.039gf
  • Differential Travel: 0.020" (0.5mm)
  • Switch Function: Off-Mom
  • Standard Package: 1,000
