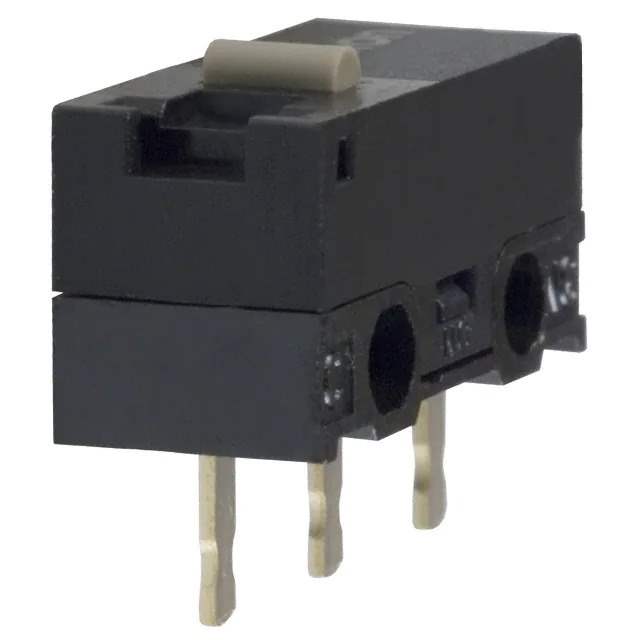

D2F-01

Part No D2F-01
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 20gf
Operating Position 0.217" (5.5mm)
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.13mm)
Overtravel 0.010" (0.25mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583450-D2F-01
Ultra Librarian 3D Model Ultra Librarian D2F-01 CAD Model

Description

The D2F series is a range of SPDT limit switches designed for various applications.

  • Voltage Rating: 30V DC
  • Current Rating: 100mA
  • Actuator Type: Round Pin Plunger
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 150gf
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.005" (0.13mm)
  • Overtravel: 0.010" (0.25mm)
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
