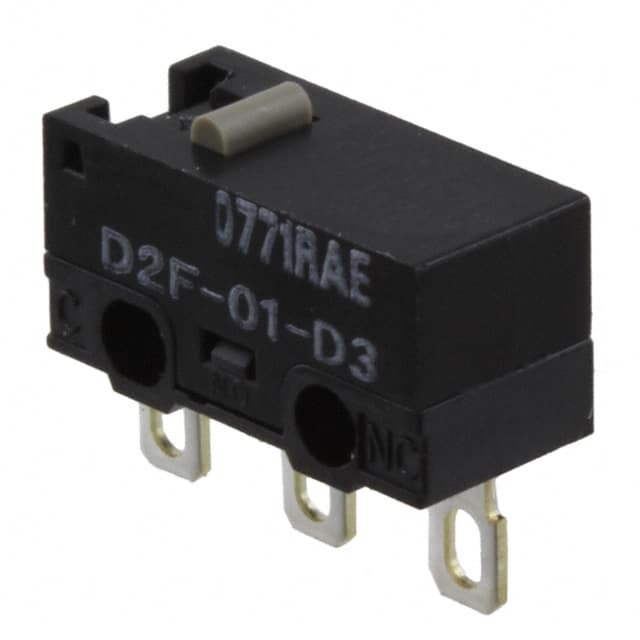

Part No D2F-01-D3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 150gf
Release Force 20gf
Operating Position 0.217" (5.5mm)
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.13mm)
Overtravel 0.010" (0.25mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 868007-D2F-01-D3
Ultra Librarian 3D Model Ultra Librarian D2F-01-D3 CAD Model

Description

The Omron D2F-01-D3 is a limit switch from Omron.

  • Circuit Configuration: SPDT
  • Operating Force: 150gf
  • Mechanical Life: 1,000,000 cycles
  • Voltage Rating: 30VDC
  • Electrical Life: 100,000 cycles
  • Mounting: Chassis mounting
  • Ingress Protection: IP40
  • Temperature Range: -40°C to 85°C
  • Series: Omron D2F series
  • Package: Bulk package of 1,000 pcs.
