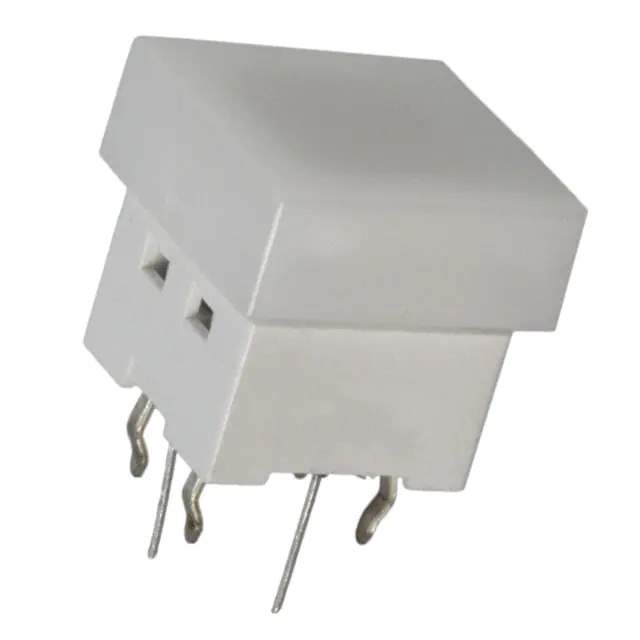

Same model may have multiple batches, images only for reference.

B3W-9010-RG2N

Name: B3W-9010-RG2N
Brand: Omron
SKU: 863091
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B3W-9010-RG2N
Manufacturer	Omron
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Omron
Series	B3W-9
Package	Box
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Square Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	10.20mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	12.00mm x 12.00mm
Illumination	Illuminated
Illumination Type, Color	LED, Green/Red
Illumination Voltage (Nominal)	1.8, 2.1 VDC
Operating Force	160gf
Features	Sealed - Fully
Temperature Range - Operating	-25°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	1,000,000 Cycles
Base Product Number	B3W
Standard Package	300 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	863091-B3W-9010-RG2N
Ultra Librarian 3D Model	Ultra Librarian B3W-9010-RG2N CAD Model

Description

The B3W-9 series tactile switch is a high-quality electronic component designed for various switching applications.

Actuator Type: Square button
Switch Function: Off-Mom
Illumination Voltage: 1.8VDC and 2.1VDC
Outline: 12.00mm x 12.00mm
Actuator Orientation: Top actuated
Mechanical Life: 1,000,000 cycles
Status: Active product
