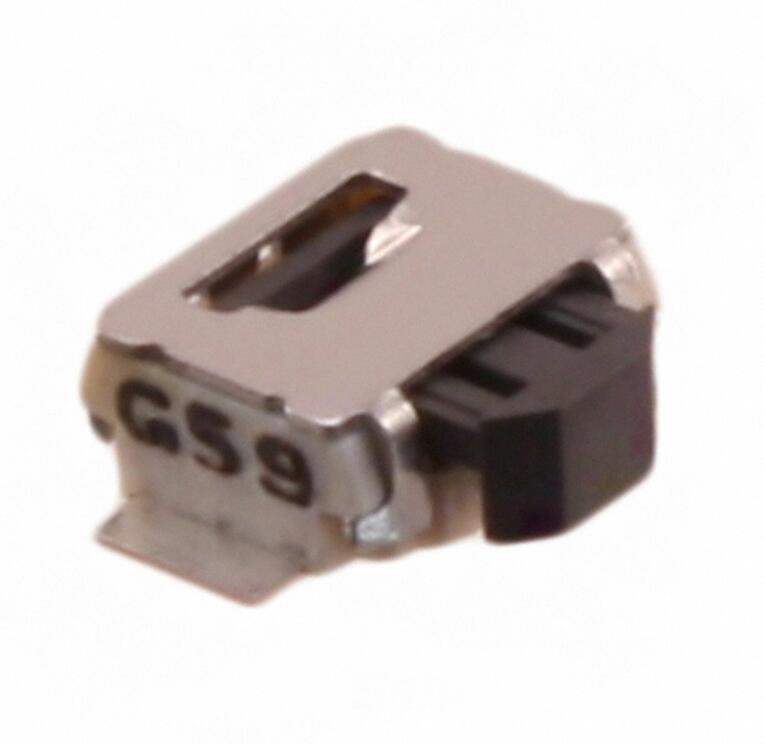

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202631-B3U-3000P
Win Source Part Number Cross
Manufacturer Omron Electronics Inc-EMC Div
Category Switches Tactile Switches
Series B3U
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Ultra Librarian 3D Model Ultra Librarian B3U-3000P CAD Model

Description

The B3U series tactile switch is a product manufactured by Omron Electronics Inc-EMC Div.

  • Category: Switches, Tactile Switches
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Rectangular Button
  • Contact Rating: 0.05A @ 12VDC
  • Packaging: Tape & Reel (TR), Cut Tape (CT), and Digi-Reel™
  • Status: Active
