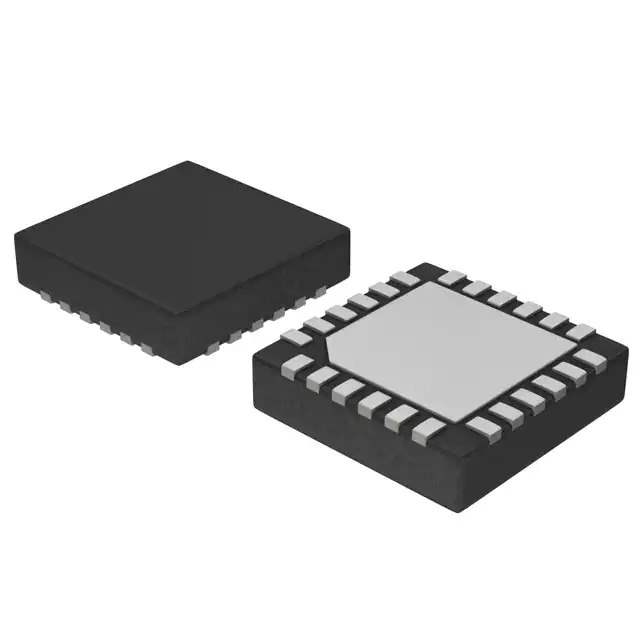

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Catalyst Semiconductor
Series CAT4016
Package Bulk
Product Status Active
Type Linear
Topology Shift Register
Internal Switch(s) Yes
Number of Outputs 16
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Voltage - Output 5.5V
Current - Output / Channel 80mA
Frequency 25MHz
Dimming PWM
Applications Signage
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-TQFN (4x4)
Base Product Number CAT4016
Standard Package 548 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 865809-CAT4016HV6
Ultra Librarian 3D Model Ultra Librarian CAT4016HV6 CAD Model

Description

The CAT4016HV6 is a power management integrated circuit designed for LED drivers in signage applications.

  • Series: CAT4016
  • Driver Type: linear
  • Voltage Output: 5.5V
  • Frequency: 25MHz
  • Outputs: 16
  • Current Output: 80mA per channel
  • Features: internal switches
  • Voltage Supply Range: 3V to 5.5V
  • Mounting Type: surface mountable
  • Package: 24-WFQFN exposed pad
  • Dimming: PWM
  • Manufacturer: Catalyst Semiconductor
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Product Status: active
