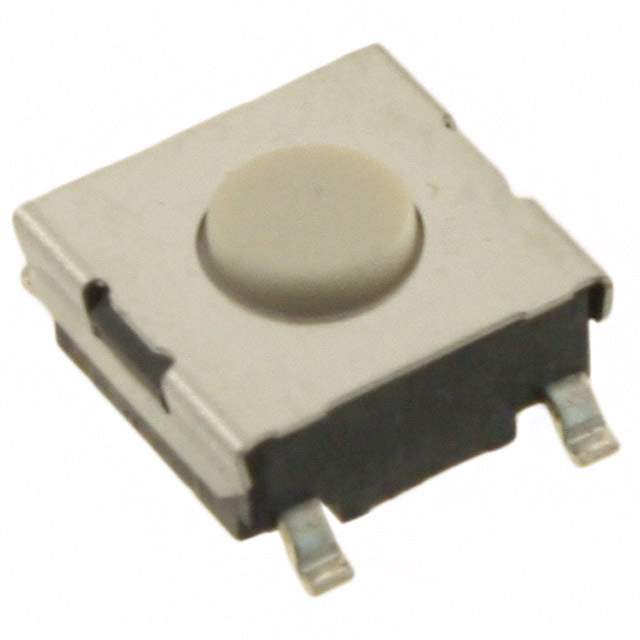

Same model may have multiple batches, images only for reference.

B3FS-1002

Name: B3FS-1002
Brand: Omron
SKU: 1059787
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B3FS-1002
Manufacturer	Omron
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Omron Electronics Inc-EMC Div
Series	B3FS
Package	Bag
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Standard
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	3.10mm
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.30mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	150gf
Temperature Range - Operating	-25°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	300,000 Cycles
Base Product Number	B3F
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	B3FS-1002 BY OMZ,B3FS-1002-ND,B3FS1002,B3FS1002BYOMZ,SW1236
Standard Package	1,500
Win Source Part Number	1059787-B3FS-1002
Ultra Librarian 3D Model	Ultra Librarian B3FS-1002 CAD Model

Description

The Omron B3FS series tactile switch is a SPST-NO switch function that functions as an Off-Mom switch.

Actuator Orientation: Top Actuated
Actuator Type: Standard
Switch Travel: 0.25mm
Operating Force: 150gf
Mechanical Life: 300,000 cycles
Termination Style: Gull Wing
Mounting: SMD (SMT)
Contact Rating @ Voltage: 0.05A @ 24VDC
Illumination: Non-Illuminated
Outline: 6.30mm x 6.00mm
Actuator Height off PCB, Vertical: 3.10mm
Feature: Oil-Resistant
