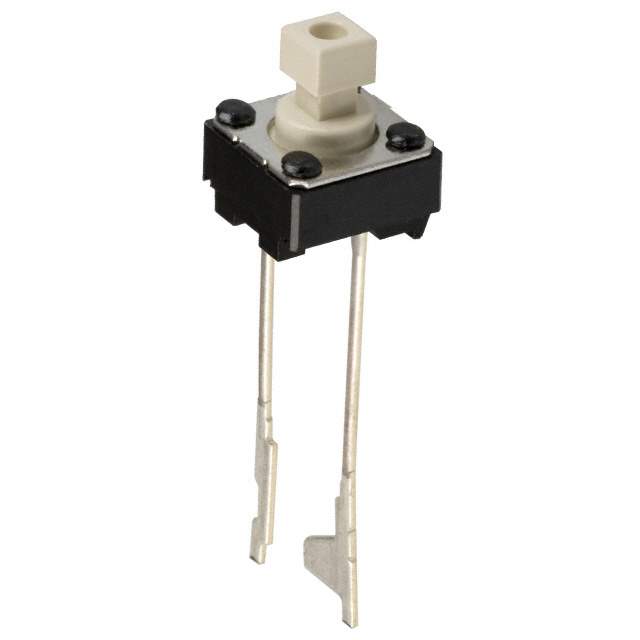

B3F-6050

Part No B3F-6050
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging AMMO PACKAGE
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 010675-B3F-6050
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management, Automation & Process Control
Ultra Librarian 3D Model Ultra Librarian B3F-6050 CAD Model

Description

Product Overview

The B3F-6050 component stands out for its robust performance and adaptability in numerous electronic contexts. Its reliable design makes it a go-to solution for complex electronic systems.

Features and Benefits

  • Efficiency: Ensures high-efficiency operation in any application.
  • Extended Longevity: Built to last with minimal maintenance requirements.
  • Seamless Integration: Easily integrates with existing systems due to its design compatibility.

Applications

  • Instrumentation Systems
  • Renewable Energy Projects
  • Consumer Gadgets
  • Security Devices

The B3F-6050 provides exceptional utility and quality, making it a reliable choice for professionals in need of durable and effective electronic components.
