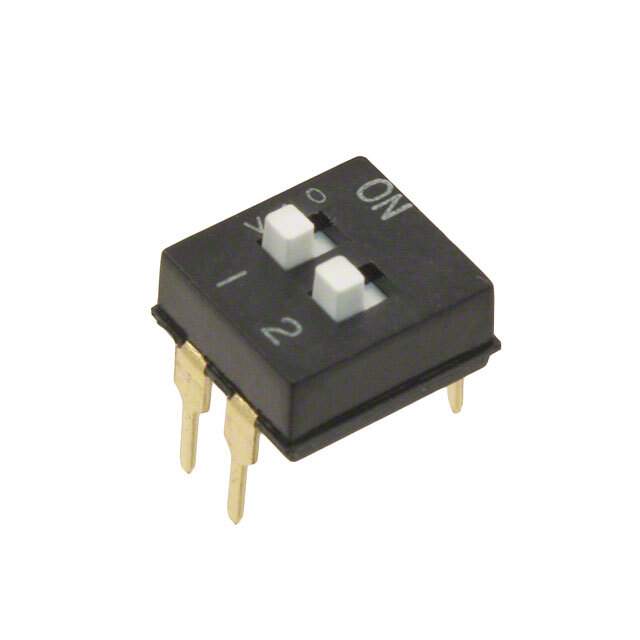

A6TN-2104 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6TN
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 0.276" (7.00mm)
Electrical Life 1,000 Cycles
Base Product Number A6T
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names SW1198,A6TN2104
Standard Package 60
Win Source Part Number 1000027-A6TN-2104
Ultra Librarian 3D Model Ultra Librarian A6TN-2104 CAD Model

Description

The A6TN series DIP switch is a single pole, single throw switch that features a slide actuator with raised actuator level.

  • Poles/Throws: single pole, single throw
  • Actuator: slide with raised level
  • Positions: 2
  • Pitch: 0.100 inches (2.54mm)
  • Termination: PC pin
  • Washable: Yes
  • Voltage Rating: 24VDC
  • Height Above Board: 0.228 inches (5.80mm)
  • Length: 0.276 inches (7.00mm)
  • Circuit: SPST
  • Electrical Life: 1,000 cycles
  • Current Rating: 25mA
  • Temperature Range: -30°C to 85°C
  • Package: tube
  • Standard Package: 60
