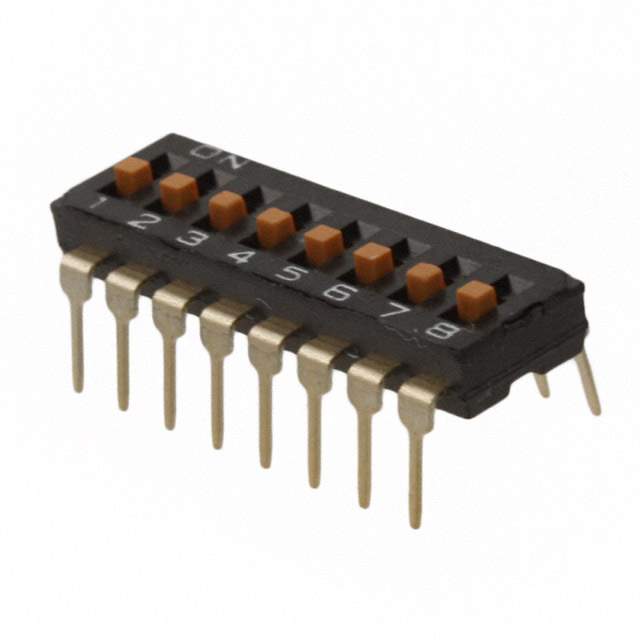

A6T-8104 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Dip Switch SPST Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Manufacturer Omron
Series A6T
Package Tube
Operating Temperature Range -20°C ~ 70°C
Mounting Through Hole
Family Name A6T
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number SW1131, A6T-8104-ND, A6T8104
Quantity per package 22
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859057-A6T-8104
Ultra Librarian 3D Model Ultra Librarian A6T-8104 CAD Model

Description

The Omron A6T series dip switch is a slide switch with SPST positions, a through-hole actuator, and a 25mA 24VDC rating from Omron.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Operating Temperature: -20°C to 70°C
  • Package: Tube
