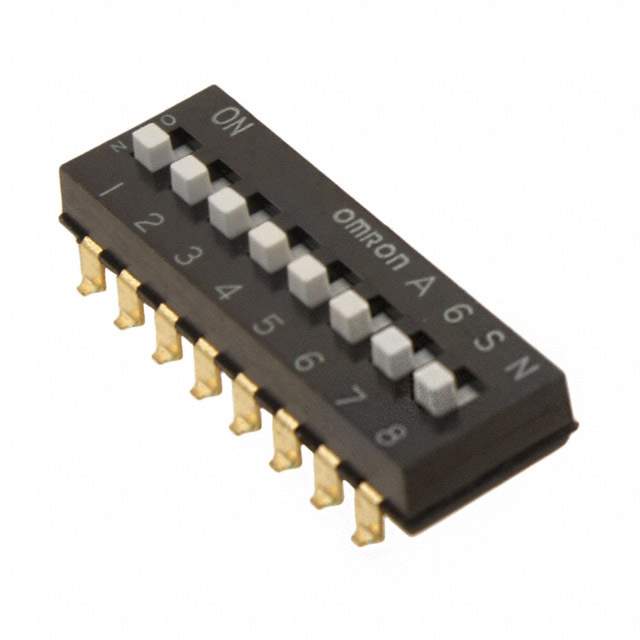

A6SN-8104 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6SN
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 0.876" (22.26mm)
Electrical Life 1,000 Cycles
Base Product Number A6SN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-A6SN-8104,A6SN8104,SW1193
Standard Package 20
Win Source Part Number 1230803-A6SN-8104
Ultra Librarian 3D Model Ultra Librarian A6SN-8104 CAD Model

Description

This is a DIP switch with a series of A6SN and 8 number of positions.

  • Series: A6SN
  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Voltage Rating: 24VDC
  • Height Above Board: 0.214" (5.45mm)
  • Length: 0.876" (22.26mm)
  • Standard Package: 20
  • Mounting: Surface
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Washable: Yes
  • Temperature Range: -30°C to 85°C
  • Manufacturer: Omron Electronics Inc-EMC Div
