Same model may have multiple batches, images only for reference.

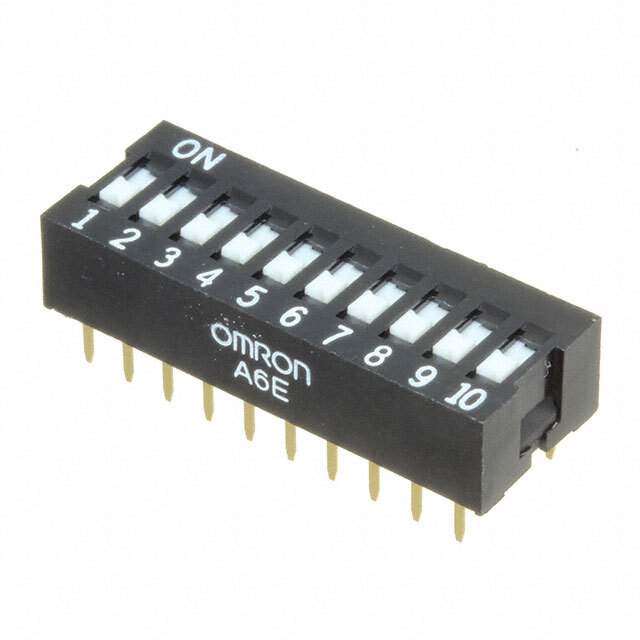

A6E-0101-N Real Image
Same model may have multiple batches, images only for reference.

A6E-0101-N

Part No A6E-0101-N
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6E-N
Package Tray
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.230" (5.85mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 70°C
Length 1.054" (26.76mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number A6E
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names Z8467,A6E0101N,A6E-0101-N-ND
Standard Package 17
Win Source Part Number 1042268-A6E-0101-N
Ultra Librarian 3D Model Ultra Librarian A6E-0101-N CAD Model

Description

The A6E-N series DIP switch from Omron Electronics Inc-EMC Div is a SPST circuit switch with a slide actuator type.

  • Positions: 10
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: PC pin
  • Voltage Rating: 24VDC
  • Contact Finish: gold
  • Height Above Board: 0.230" (5.85mm)
  • Length: 1.054" (26.76mm)
  • Package: tray
  • Standard Package: 17
  • Alternative Part Number: A6E-0101-N-ND
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: flush, recessed
  • Washable: No
  • Temperature Range: -20°C ~ 70°C
