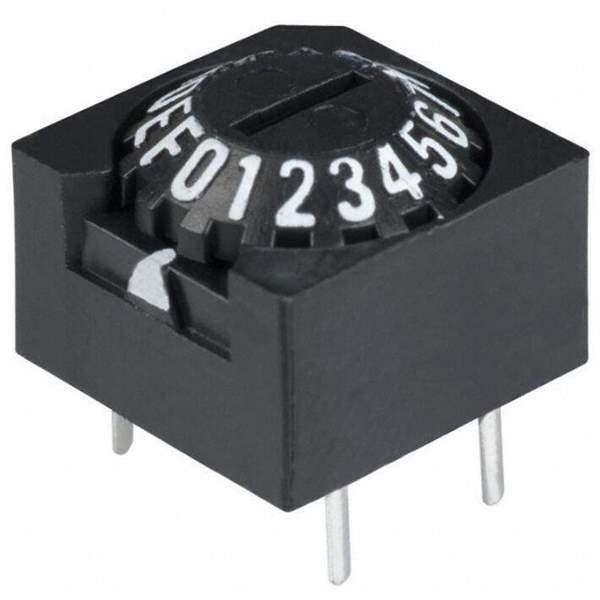

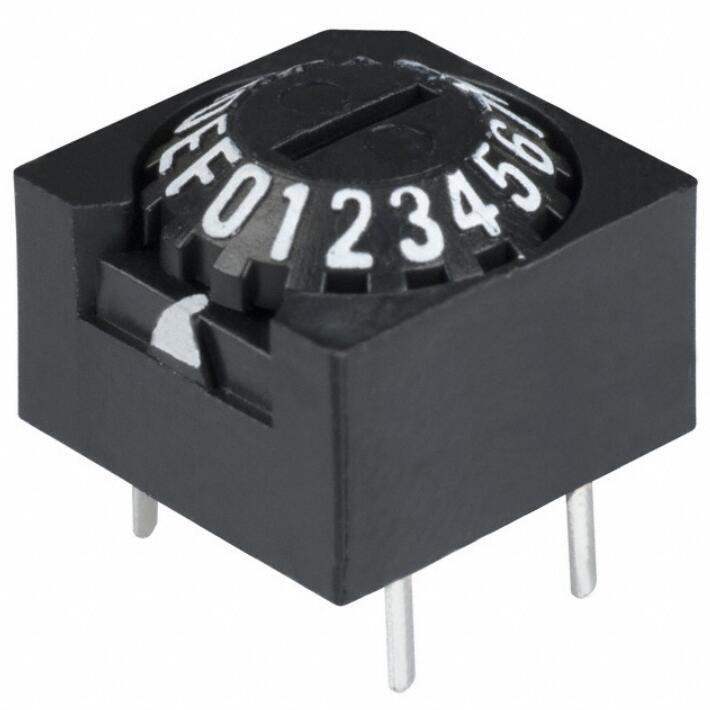

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202955-A6A-16R
Win Source Part Number Cross
Manufacturer Omron Electronics Inc-EMC Div
Category Switches DIP Switches
Series A6A
Package Bulk
Product Status Active
Circuit Hexadecimal
Current Rating (Amps) 100mA
Voltage Rating 28VDC
Actuator Type Rotary for Tool
Ultra Librarian 3D Model Ultra Librarian A6A-16R CAD Model

Description

The A6A series DIP switch, manufactured by Omron Electronics Inc-EMC Div, is a reliable and versatile component used for circuit configuration and control.

  • Category: Switches, DIP Switches
  • Circuit: Hexadecimal
  • Actuator Type: Rotary, Tool Operation
  • Voltage Rating: 28VDC
  • Current Rating: 100mA
  • Package: Bulk
  • Status: Active
  • Used in: Electronic devices and systems that require manual configuration and control options.
