Same model may have multiple batches, images only for reference.

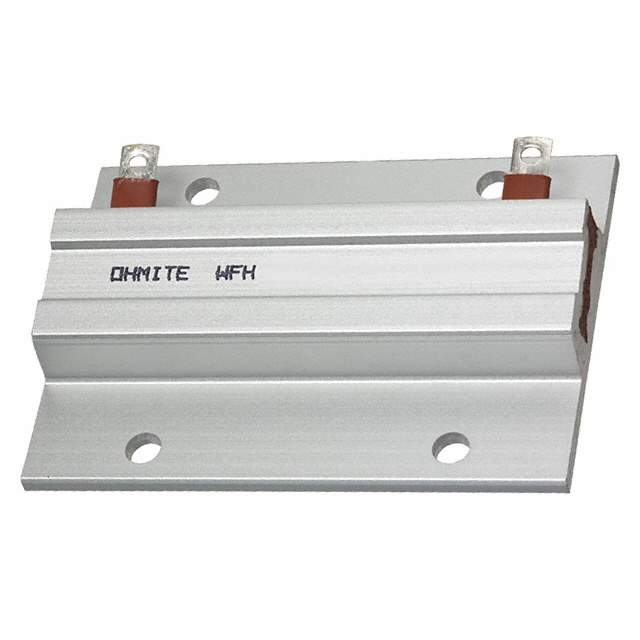

WFH330L1R0KE Real Image
Same model may have multiple batches, images only for reference.

WFH330L1R0KE

Part No WFH330L1R0KE
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 1 OHM 10% 330W / 1 Ohms ±10% 330W Wirewound Chassis Mount Resistor
Datasheet
WFH330L1R0KE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Ohmite
Series WFH
Package Bulk
Resistance 1 Ohms
Tolerance ±10%
Power (Watts) 330W
Composition Wirewound
Temperature Range - Operating -40°C ~ 220°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 11.024" L x 2.008" W (280.00mm x 51.00mm)
Height - Seated (Max) 0.496" (12.60mm)
Lead Style Solder Lugs
Package / Case Radial, Rectangular Case
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Standard Package 1
Win Source Part Number 1190019-WFH330L1R0KE
Ultra Librarian 3D Model Ultra Librarian WFH330L1R0KE CAD Model

Description

The Ohmite WFH330L1R0KE is a high-quality chassis mount resistor with a power rating of 330W and a resistance of 1 Ohms. This resistor is manufactured by Ohmite.

  • Power Rating: 330W
  • Resistance: 1 Ohms
  • Tolerance: ±10 percent
  • Temperature Range: -40°C to 220°C
  • Resistor Type: Wirewound
  • Coating: Aluminum
  • Case Package: Radial, Rectangular
  • Height: 0.496 inches (12.60mm)
  • Dimension: 11.024 inches (280.00mm) length x 2.008 inches (51.00mm) width
  • Win Source Part Number: 1190019
