Same model may have multiple batches, images only for reference.

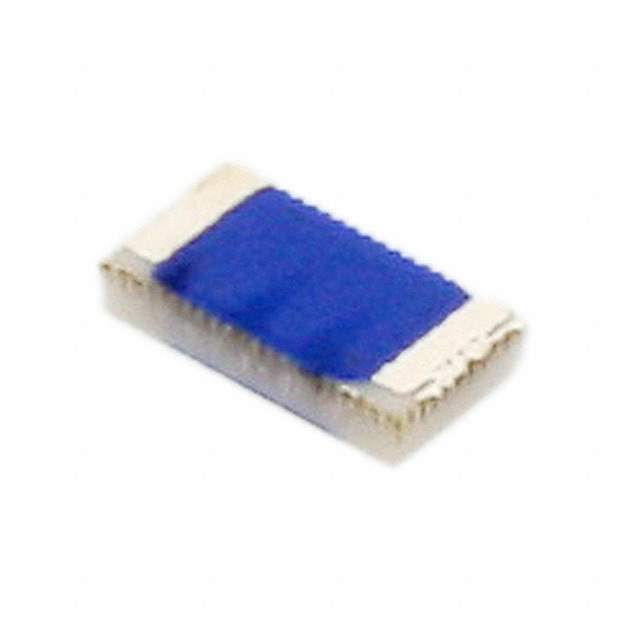

HVF1206T1008JE Real Image
Same model may have multiple batches, images only for reference.

HVF1206T1008JE

Part No HVF1206T1008JE
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES SMD 10G OHM 5% 0.3W 1206 / 10 GOhms ±5% 0.3W Chip Resistor 1206 (3216 Metric) High Voltage, Moisture Resistant, Non-Magnetic Thick Film
Datasheet
HVF1206T1008JE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Ohmite
Series HVF
Package Bulk
Product Status Obsolete
Resistance 10 GOhms
Tolerance ±5%
Power (Watts) 0.3W
Composition Thick Film
Features High Voltage, Moisture Resistant, Non-Magnetic
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) 0.028" (0.71mm)
Number of Terminations 2
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338267-HVF1206T1008JE
Ultra Librarian 3D Model Ultra Librarian HVF1206T1008JE CAD Model

Description

The Ohmite HVF series resistor is a high voltage, moisture resistant, non-magnetic thick film composition resistor with a resistance of 10 GOhms and a power rating of 0.3W.

  • Series: HVF
  • Features: High Voltage, Moisture Resistant, Non-Magnetic
  • Resistance: 10 GOhms
  • Power Rating: 0.3W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Package/Case: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Height - Seated (Max): 0.028" (0.71mm)
  • Size/Dimension: 0.128" L x 0.063" W (3.25mm x 1.60mm)
  • Mounting Type: Chip Resistor Surface Mount
