Same model may have multiple batches, images only for reference.

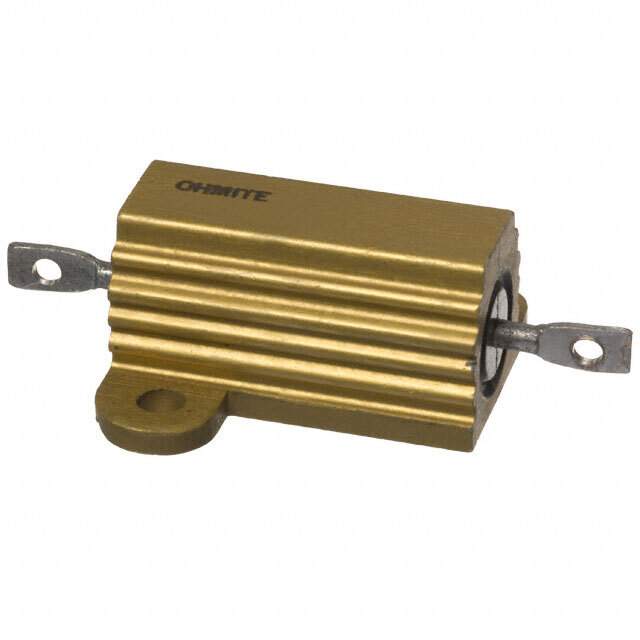

HS50 50R F Real Image
Same model may have multiple batches, images only for reference.

HS50 50R F

Part No HS50 50R F
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 50 OHM 1% 50W / 50 Ohms ±1% 50W Wirewound Chassis Mount Resistor
Datasheet
HS50 50R F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Resistance 50 Ohms
Tolerance ±1%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.933" L x 0.559" W (49.10mm x 14.20mm)
Height - Seated (Max) 0.583" (14.80mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1349722-HS50 50R F
Ultra Librarian 3D Model Ultra Librarian HS50 50R F CAD Model

Description

The ARCOL HS series resistor is a wirewound resistor coated with aluminum housing.

  • Manufacturer: ARCOL
  • Resistance: 50 Ohms
  • Power (Watts): 50W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Wirewound
  • Package / Case: Axial
  • Lead Style: Solder Lugs
  • Mounting Feature: Flanges
  • Type: Chassis Mount
