Same model may have multiple batches, images only for reference.

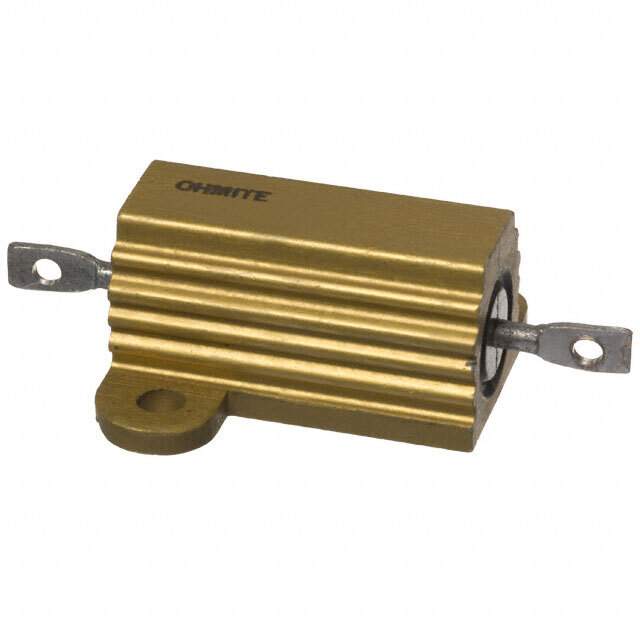

HS50 100R J Real Image
Same model may have multiple batches, images only for reference.

HS50 100R J

Part No HS50 100R J
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 100 OHM 5% 50W / 100 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Datasheet
HS50 100R J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Resistance 100 Ohms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.933" L x 0.559" W (49.10mm x 14.20mm)
Height - Seated (Max) 0.583" (14.80mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1341052-HS50 100R J
Ultra Librarian 3D Model Ultra Librarian HS50 100R J CAD Model

Description

The Ohmite ARCOL HS series resistor is a wirewound composition resistor.

  • Resistance: 100 Ohms
  • Power Rating: 50W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Package/Case: Axial, box
  • Lead Style: Solder lugs
  • Height Seated (max): 0.583" (14.80mm)
  • Size/Dimension: 1.933" L x 0.559" W (49.10mm x 14.20mm)
  • Application: Chassis mount resistors
