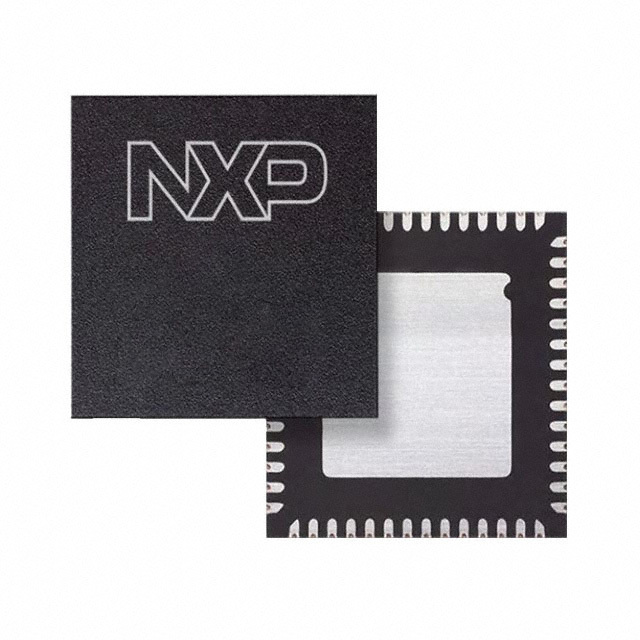

Product Overview: TJA1102SHN/0Z

The TJA1102SHN/0Z is a high-performance automotive Ethernet transceiver from NXP Semiconductors, designed to meet the rigorous demands of in-vehicle networks. This robust component plays a critical role in enabling fast and reliable data communication for a wide range of automotive applications, such as advanced driver-assistance systems (ADAS), infotainment, vehicle diagnostics, and telematics.

Key Features

• 100BASE-T1 Compliance: Conforms to the 100BASE-T1 physical layer standard, allowing for high-speed data transmission over a single twisted-pair cable, which reduces wiring complexity and weight in vehicles.
• Low Power Consumption: Features an innovative low-power mode that significantly reduces power consumption when the network is idle or in standby, contributing to the overall energy efficiency of the vehicle.
• Robustness: Engineered to withstand the harsh automotive environment, offering excellent electromagnetic compatibility (EMC) performance and high levels of electrostatic discharge (ESD) protection.
• Wake-Up and Sleep Functions: Supports wake-up and sleep signaling via the data cable, enabling efficient power management and quick network responsiveness.

Applications

The TJA1102SHN/0Z is ideal for a variety of applications within the automotive sector, including:

• Real-time safety-critical communication for ADAS
• High-speed data transfer for infotainment systems
• On-board diagnostics and vehicle condition monitoring
• Backbone connectivity for vehicle control systems

Technical Specifications

Quality and Reliability

The TJA1102SHN/0Z is designed to meet the stringent quality and reliability standards required for automotive-grade components. It is AEC-Q100 qualified, ensuring performance under extreme temperature variations, and is manufactured in ISO/TS 16949 certified facilities, reflecting NXP's commitment to the highest levels of quality management for automotive production.
