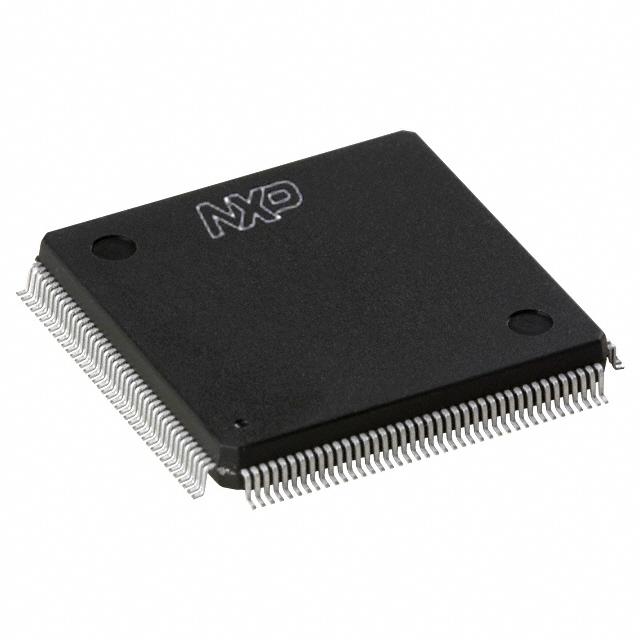

Product Overview: SAA7118H/V1

The SAA7118H/V1 is a high-quality video input processor manufactured by NXP Semiconductors. It is designed to interface with a variety of analog video signals, providing an ideal solution for applications that require video capturing, such as digital video recorders, television sets, and multimedia PCs.

Key Features

• Multi-Standard Support: The SAA7118H/V1 is capable of handling a wide range of video formats including NTSC, PAL, and SECAM. It supports 9-bit ADCs, ensuring high-quality video signal conversion.
• Enhanced Video Processing: With its integrated comb filter and scaler, the device delivers superior image quality, minimizing artifacts and improving picture clarity.
• Flexible Input Options: It features multiple input channels that can be configured to accept various composite, S-Video, and component video signals.
• Digital Output: The processor outputs digital video in ITU-R BT.656 format, making it compatible with a range of digital video interfaces and devices.

Applications

The versatility of the SAA7118H/V1 makes it suitable for a diverse array of applications. It is particularly well-suited for:

• Set-top boxes and DVR systems
• PC-based video capture cards
• Video conferencing equipment
• Security and surveillance systems

Technical Specifications

Below are some of the technical specifications of the SAA7118H/V1:

• 9-bit ADCs with 5-line comb filter
• Support for multiple video standards including NTSC, PAL, and SECAM
• Automatic gain control (AGC) for optimal signal quality
• Programmable Scaler for image resizing
• Macrovision copy protection detection
• On-chip color space conversion (CSC)

The SAA7118H/V1 by NXP is a robust and feature-rich video input processor that offers excellent performance for a variety of video applications. Its advanced video processing capabilities ensure high-quality video output, making it a reliable choice for designers and manufacturers in the multimedia industry.
