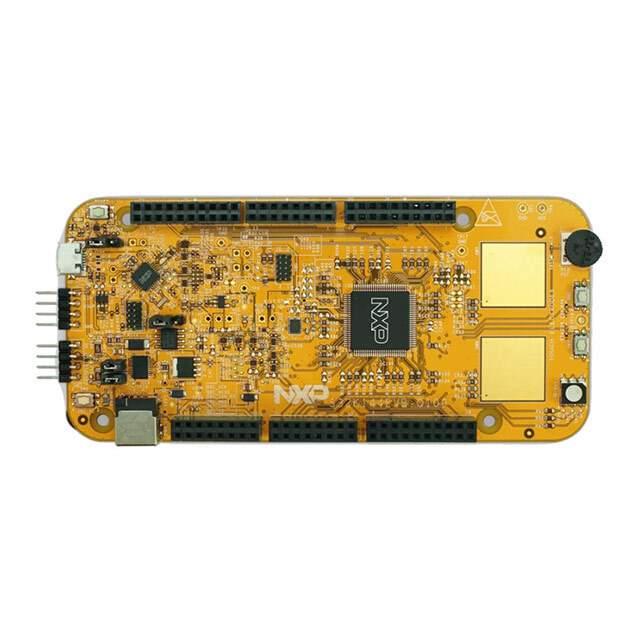

NXP S32K144EVB-Q100 Evaluation Board

The S32K144EVB-Q100 from NXP Semiconductors is a versatile evaluation platform that features the S32K144 microcontroller, tailored for automotive and high-reliability industrial applications. This evaluation board is designed to provide a robust hardware environment that enables engineers to develop, test, and prototype applications with the S32K1xx MCU family, which is built on the Arm® Cortex®-M4F processor.

The S32K144EVB-Q100 offers a comprehensive suite of hardware features to support a wide range of use cases. It includes an integrated open standard serial and debug adapter (OpenSDA) with support for several industry-standard debug interfaces. This ensures seamless integration with a variety of development environments and debugging tools. The evaluation board also provides a rich set of peripherals including CAN, LIN, and UART interfaces, which are essential for automotive communication protocols.

The board comes equipped with a preloaded bootloader, which simplifies the process of programming and reprogramming the MCU. Additionally, it includes user-accessible buttons and LEDs, which are useful for implementing user interfaces and for status indication during development and testing. The S32K144EVB-Q100 also features a touch sensing interface, enabling the development of applications that require capacitive touch inputs.

For connectivity, the evaluation board includes an Ethernet port, an essential feature for applications that require network connectivity. Furthermore, it provides expansion capabilities through Arduino™ UNO R3 compatible headers, which allow for the addition of numerous off-the-shelf shields and custom add-on boards, thereby extending the functionality of the platform even further.

The S32K144EVB-Q100 is not only a powerful tool for automotive applications but also for a wide range of industrial and IoT applications that demand high reliability and performance. NXP provides comprehensive software support, including the S32 Design Studio IDE, SDK with RTOS support, and a rich set of drivers and middleware to accelerate the development process and reduce time-to-market for innovative products.
