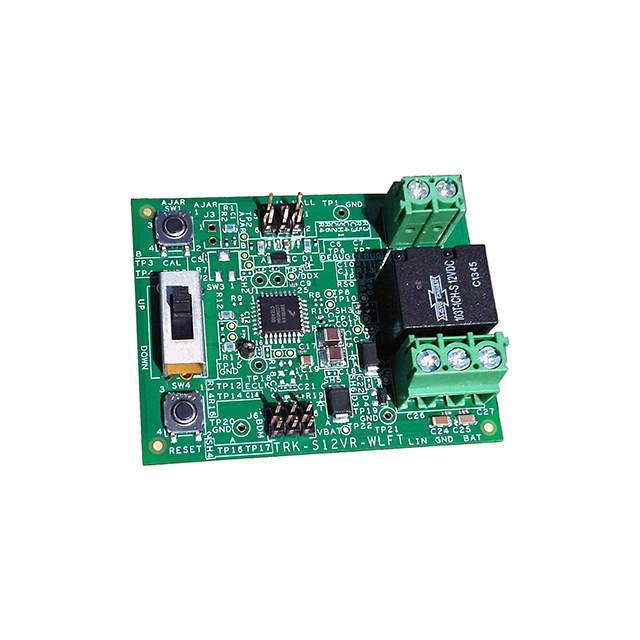

The NXP S12VR32EVB is a versatile evaluation board designed to provide a robust development platform for NXP's S12 MagniV portfolio, specifically tailored for automotive and industrial applications. This evaluation board is centered around the S12VR32, a 16-bit microcontroller that integrates a sophisticated S12 core with a smart mixed-signal platform, providing an ideal solution for handling complex control tasks in a single chip.

Key Features

• Integrated S12 Core: The S12VR32 microcontroller features a high-performance 16-bit S12 CPU, optimized for automotive applications, offering a perfect balance between control capabilities and power consumption.
• On-Chip Memory: It comes with 32KB of flash memory and 2KB of RAM, ensuring sufficient space for application code and data storage.
• Advanced Peripherals: The board includes a range of peripherals such as a 12-channel 12-bit Analog-to-Digital Converter (ADC), multiple timers, and communication interfaces like SCI and SPI, providing a comprehensive set of tools for interfacing with sensors, actuators, and other microcontrollers.
• Robust I/O Capabilities: The S12VR32EVB is equipped with numerous input/output options, including high-voltage inputs, low-voltage inputs, and high-current outputs, making it highly suitable for driving motors, actuators, and reading sensor data in harsh environments.
• Development Tools: NXP provides a full suite of development tools, including CodeWarrior Development Studio, enabling rapid application development and debugging for the S12VR32EVB.

Applications

The S12VR32EVB is designed to cater to a wide array of applications within the automotive sector, such as body electronics, sensor interfaces, motor control units, and small engine control systems. It is also well-suited for industrial applications that require a reliable microcontroller with mixed-signal capabilities.

Package Contents

The evaluation board package typically includes the S12VR32EVB board itself, along with necessary cables, power supply, and documentation to get started. Software and additional resources can be downloaded from the NXP website.

With its rich feature set and robust design, the NXP S12VR32EVB provides an excellent platform for developers looking to harness the power of the S12 MagniV microcontrollers for their next automotive or industrial project.
