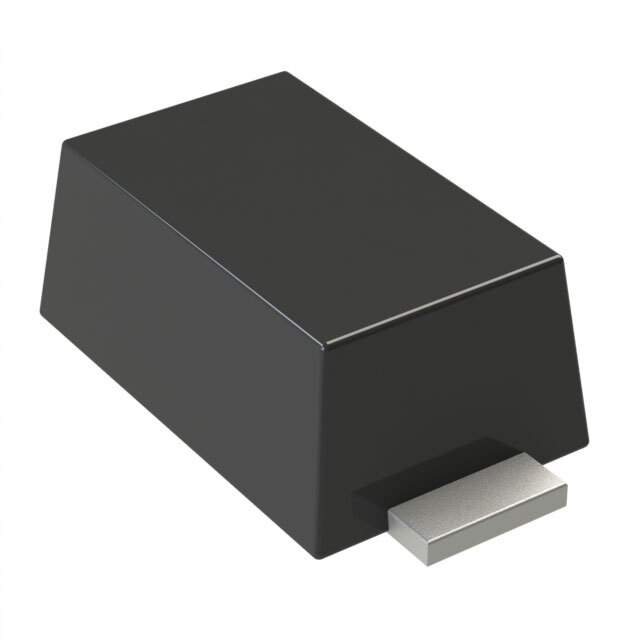

The NXP PMEG2010EH is a highly efficient, low forward voltage drop Schottky barrier rectifier. Designed for a range of applications, this diode is optimized for low voltage, high-frequency rectification, and free-wheeling applications in converters and inverters.
Key Features
- Low Forward Voltage Drop: The PMEG2010EH offers a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the device during operation.
- High Efficiency: With its Schottky barrier technology, the device provides superior switching performance and a high degree of efficiency, which is crucial for power management applications.
- Surge Current Capability: The diode can handle high surge currents, making it suitable for applications that experience transient overvoltages.
- Low Leakage Current: The PMEG2010EH maintains a low leakage current, which minimizes power loss when the diode is in the reverse-biased state.
- Planar Passivated Chips: The use of planar passivated chips ensures reliability and robust performance even in challenging environmental conditions.
Applications
With its outstanding features, the NXP PMEG2010EH is ideal for a variety of applications, including:
- Switching power supplies
- DC-DC converters
- Free-wheeling diodes in converters and inverters
- Power management devices
- Automotive applications requiring high reliability
Technical Specifications
Parameter
Value
Package
SOD123W
Maximum Average Forward Current (IF(AV))
2 A
Peak Reverse Voltage (VRM)
100 V
Forward Voltage Drop (VF)
0.69 V at 2 A
Operating Junction Temperature (Tj)
-65 to +150 °C
For engineers and designers looking for a reliable and efficient Schottky diode, the NXP PMEG2010EH is an excellent choice. Its combination of low forward voltage drop, high surge current capability, and low leakage current makes it a versatile component in power management systems.
