Same model may have multiple batches, images only for reference.

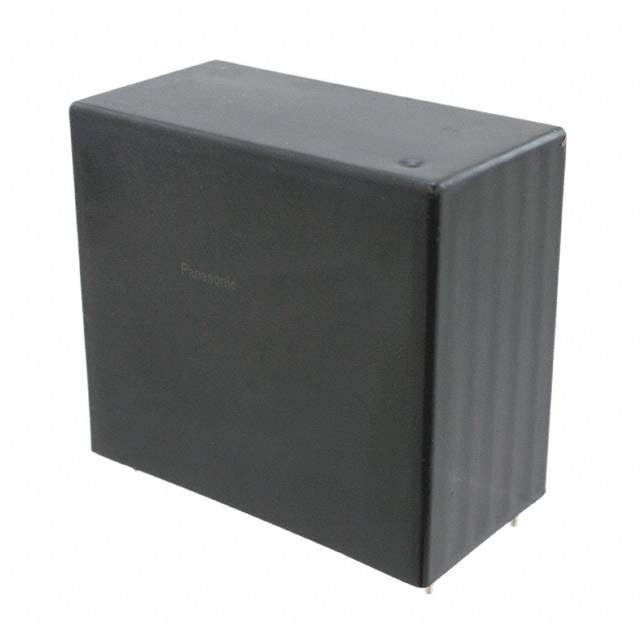

EZP-E80406MTA Real Image
Same model may have multiple batches, images only for reference.

EZP-E80406MTA

Part No EZP-E80406MTA
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 40UF 10% 800VDC RADIAL / 40 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial - 4 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series EZPE
Package Bulk
Capacitance 40 µF
Tolerance ±10%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 8.3 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Dimension 2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering
Features Low ESR
Base Product Number EZP-E
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Other Names EZPE80406MTA,P15534
Standard Package 50
Win Source Part Number 1010036-EZP-E80406MTA
Ultra Librarian 3D Model Ultra Librarian EZP-E80406MTA CAD Model

Description

The EZPE series capacitor from Panasonic Electronic Components is an ideal choice for DC link and DC filtering applications.

  • Application: DC link and DC filtering
  • Capacitance: 40 µF
  • Tolerance: ±10%
  • Voltage Rating: 800V DC
  • ESR: 8.3 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Through-hole
  • Package/Case: Radial-4 leads
  • Operating Temperature: -40°C to 85°C
  • Height: 2.047" (52.00mm)
  • Package: Bulk of 50
  • Feature: Low ESR
