Product Overview: PESD12VL1BA from NXP

The PESD12VL1BA is a state-of-the-art ESD protection device manufactured by NXP Semiconductors, designed to safeguard sensitive electronics from the perils of electrostatic discharge. This compact and highly efficient component is an essential addition to any circuit where ESD protection is a concern, such as in mobile phones, laptops, and other portable devices.

Key Features

• Low Clamping Voltage: The PESD12VL1BA offers a low clamping voltage, which ensures that the voltage spike due to ESD is kept to a minimum, protecting sensitive circuits from damage.
• High ESD Protection: With its capability to withstand ESD discharges up to 30 kV (air and contact discharge), this device provides robust protection that exceeds the highest level defined in the IEC 61000-4-2 international standard.
• Ultra-low Capacitance: Featuring an ultra-low capacitance of typically 0.8 pF, the PESD12VL1BA minimizes signal distortion in high-speed data lines, making it ideal for protecting USB 2.0, HDMI, LVDS, and other high-speed interfaces.
• Single-Line Protection: This component is designed to protect one signal line, offering targeted protection where it's needed most.

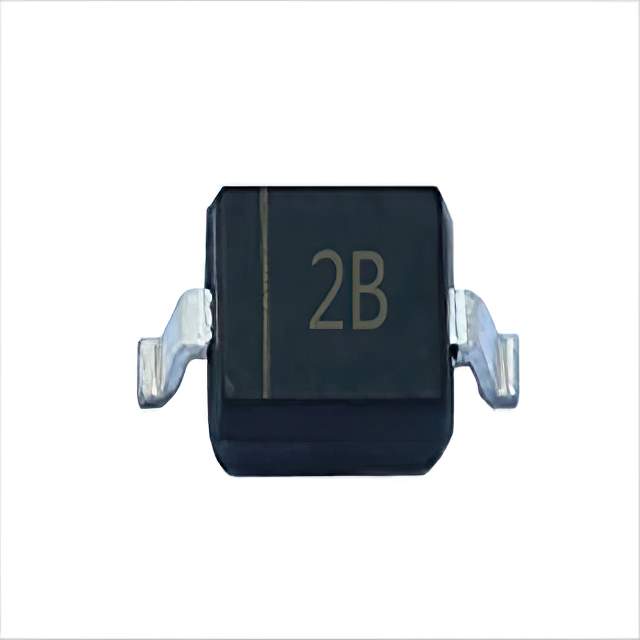

• Small Package Size: The PESD12VL1BA is available in a small SOD323 (SC-76) package, which is suitable for high-density circuit boards where space is at a premium.
• Lead-Free and RoHS Compliant: Complying with current environmental standards, the PESD12VL1BA is lead-free and RoHS compliant, making it suitable for use in products sold in regions with strict environmental regulations.

Applications

The PESD12VL1BA is versatile and can be used in a wide array of applications. It is particularly well-suited for:

• Protection of I/O interfaces
• Mobile and portable devices
• Computers and peripherals
• Digital cameras
• MP3 players

In summary, the PESD12VL1BA from NXP Semiconductors is a high-performance ESD protection diode that offers robust protection for electronic devices against the damaging effects of electrostatic discharge. Its low clamping voltage, high ESD protection level, ultra-low capacitance, and small form factor make it an excellent choice for designers looking to enhance the durability and reliability of their products.
