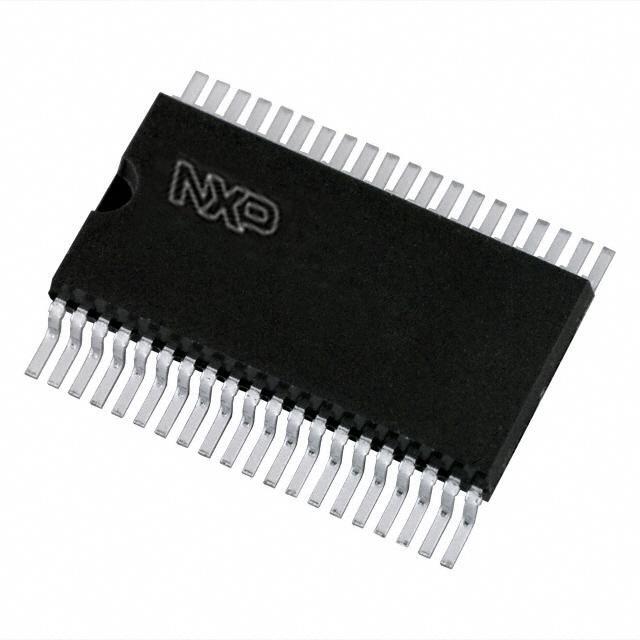

The NXP PCF8577CT/3 is a versatile and powerful LCD driver integrated circuit designed to drive large LCD panels with ease. It is a part of NXP's extensive range of interface products and is specifically tailored to control and drive segmented liquid crystal displays.
Key Features
- Compatibility: The device is compatible with most microcontrollers, providing a flexible interface option via I²C-bus or SPI-bus, making it suitable for a wide range of applications.
- Display Flexibility: It can drive up to 32 segments and manage multiple backplanes, which allows for the creation of customized LCD panel layouts to suit specific product requirements.
- Low Power Consumption: Designed with power efficiency in mind, the PCF8577CT/3 is ideal for battery-powered applications, ensuring minimal power drain and longer operational life.
- Extended Temperature Range: The device operates over an extended temperature range, making it suitable for industrial applications that may experience more extreme conditions.
- Enhanced Visibility: It includes features such as blinking, which can be used to enhance the visibility of specific segments, thereby improving user interaction with the display.
Applications
The PCF8577CT/3 is well-suited for a broad spectrum of applications, including but not limited to:
- Automotive dashboards and control panels
- Industrial displays
- Medical equipment
- Consumer electronics
- Home appliances
Technical Specifications
The PCF8577CT/3 operates at a voltage range typically from 2.5V to 6V, which provides design flexibility for various power supply requirements. It also supports a wide range of LCD panel types, from static displays to multiplexed panels up to 1:4 multiplex rates.
Conclusion
Overall, the NXP PCF8577CT/3 is a robust and reliable choice for designers looking to integrate LCD interfaces into their products. Its combination of flexibility, power efficiency, and ease of use makes it an industry favorite for driving sophisticated displays in a multitude of electronic devices.
