NXP PCA9675DK,118 Remote 16-bit I/O Expander

The NXP PCA9675DK,118 is a state-of-the-art remote 16-bit I/O expander designed to provide additional input/output (I/O) ports for microcontrollers or microprocessors over a two-line bidirectional I²C-bus. This compact and efficient component is an ideal solution for expanding I/O capabilities in a wide range of applications, including mobile devices, gaming consoles, and industrial control systems.

With its 16-bit I/O port, the PCA9675DK,118 allows for seamless integration into any system requiring additional I/Os. Each I/O can be configured as either an input or an output, providing flexibility and control to the designer. The device's I²C-bus speeds up to 1 MHz ensure rapid communication and response times, making it suitable for high-speed applications.

One of the key features of the PCA9675DK,118 is its built-in level shifting capability, which allows it to interface with different logic levels ranging from 0.8 V to 5.5 V. This means it can easily be used with various microcontrollers that operate at different voltage levels, without the need for additional level shifters.

Furthermore, the PCA9675DK,118 offers an interrupt output that can be configured to reflect the status of the input ports, thereby allowing the host controller to respond quickly to input changes without the need to continuously poll the I/O expander. This feature is particularly useful for power-sensitive applications, as it helps to reduce the overall power consumption by minimizing the need for active communication.

For robustness and reliability, the PCA9675DK,118 incorporates power-on reset functionality, ensuring that the I/Os are initialized to a known state upon power-up. Additionally, the device is equipped with an internal power-on reset, which negates the need for external reset circuitry.

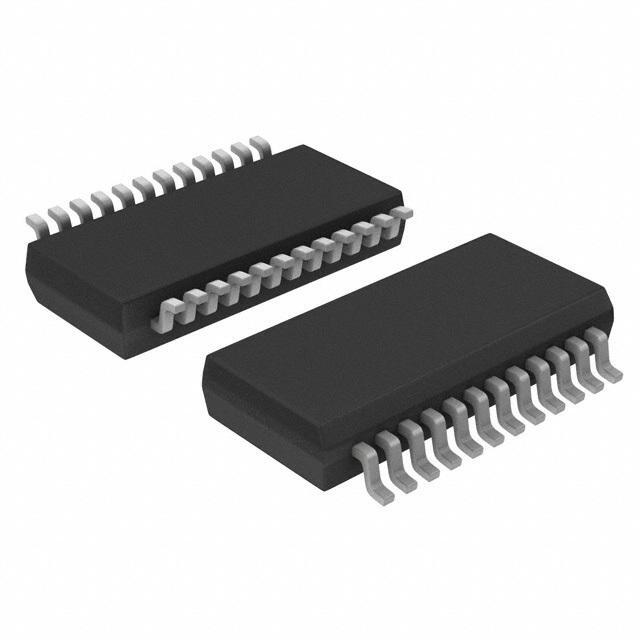

The NXP PCA9675DK,118 comes in a TSSOP24 package, making it compact and suitable for space-constrained applications. Its operational temperature range from -40°C to +85°C ensures that it performs reliably in harsh environmental conditions, further enhancing its suitability for industrial and automotive applications.

In summary, the NXP PCA9675DK,118 is a versatile and reliable I/O expander that provides designers with the flexibility and performance needed to enhance the I/O capabilities of their systems, while maintaining a small footprint and ensuring ease of integration.
