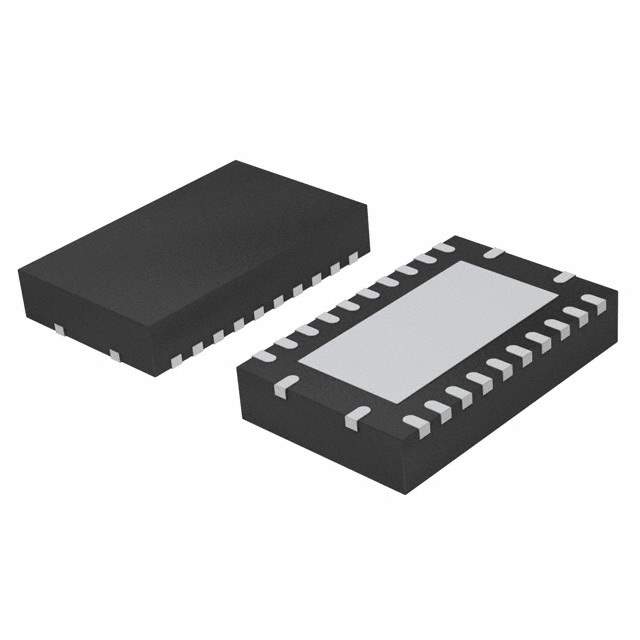

The PCA9671BQ is a robust 16-bit I/O expander from NXP Semiconductors designed to provide additional input/output (I/O) ports for microcontrollers when the number of available pins on the microcontroller is insufficient. This product is particularly useful in applications where space is at a premium and additional I/Os are needed.
Key Features:
- Expansive I/O: Offers 16 extra I/O pins that can be configured as inputs or outputs.
- Interface: Features an I2C-bus/SMBus interface with up to 400 kHz (Fast-mode) or up to 1 MHz (Fast-mode Plus).
- Addressing: Up to 8 devices can be connected to the same bus with 3 hardware address pins (1,024 combinations).
- Power Supply: Operates from a 2.3 V to 5.5 V supply, making it suitable for a wide range of applications.
- Polarity Inversion: Input port polarity is programmable through software, allowing for easy customization.
- Output Current: Capable of sourcing or sinking up to 25 mA on one pin and up to 400 mA on all pins combined.
- High Noise Immunity: Built with NXP's high ESD protection and noise immunity for harsh environments.
- Package: Available in a TSSOP24 package, which is suitable for space-constrained applications.
Applications:
The PCA9671BQ is ideal for a variety of applications that require additional I/Os. These include, but are not limited to:
- Servers
- Personal electronics
- Industrial control systems
- Home automation
- Robotics
Summary:
The NXP PCA9671BQ is a versatile and reliable solution for expanding the I/O capabilities of microcontroller-based systems. Its wide voltage range, robust noise immunity, and the ability to interface with multiple devices make it an excellent choice for designers looking to enhance the functionality of their projects without the need for additional microcontrollers. With its easy-to-use I2C-bus interface and flexible I/O configuration, the PCA9671BQ is a valuable component for a vast array of electronic applications.
