Products specifications Report Issue?

Manufacturer NXP
Mounting Style SMD/SMT

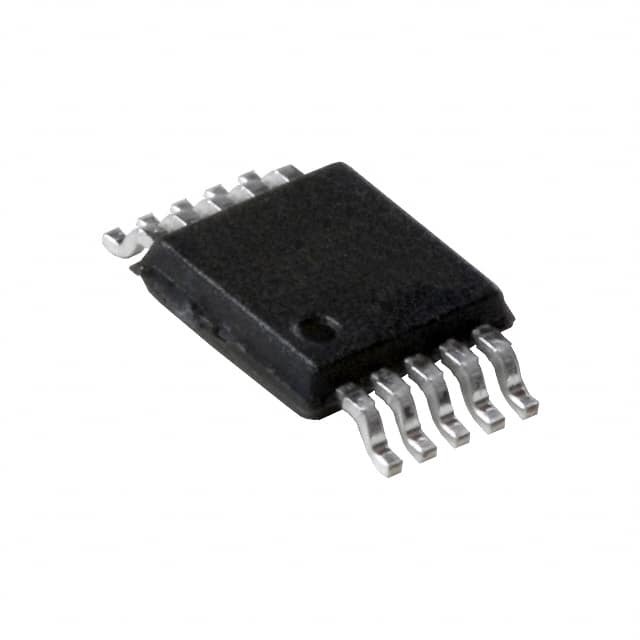

Package / Case TSSOP-10
Number of Outputs 4 Output
Input Voltage, Min 2.3 V
Input Voltage, Max 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Input Voltage 2.3 V to 5.5 V
Brand NXP Semiconductors
Number of Channels 4 Channel
Supply Current - Max 150 uA
High Level Output Current - 10 mA
Low Level Output Current 25 mA
Pd - Power Dissipation 400 mW
Product Type LED Lighting Drivers
Standard Pack Qty 2500
Subcategory Driver ICs
Ultra Librarian 3D Model Ultra Librarian PCA9632DP2,118 CAD Model

Description

The PCA9632DP2,118 is a sophisticated LED driver developed by NXP Semiconductors, designed to control and enhance the capabilities of light-emitting diodes in various applications. This component is part of the PCA963x family, which is known for its programmable blink rates and brightness control, making it an ideal choice for LED status indication, backlighting LCD displays, and other lighting projects.

Key Features

  • Output Drive Capability: The PCA9632DP2,118 can support up to four LED outputs, each with an open-drain output capable of sinking 25mA. This makes it suitable for directly driving LEDs within its specified power range.
  • I2C Interface: Equipped with an I2C-bus interface, the device allows for easy integration into existing systems with a bus speed of up to 1 MHz, enabling fast and efficient communication.
  • Adjustable Brightness: Each LED output can be individually dimmed, providing flexibility and precise control over the brightness levels through an 8-bit PWM (Pulse Width Modulation).
  • Programmable Blinking: The PCA9632DP2,118 offers programmable blink rates and duty cycles, allowing for customizable signaling and alerting functionalities.
  • Supply Voltage: It operates on a supply voltage range of 2.3V to 5.5V, accommodating a variety of power sources and systems.
  • Energy Efficient: The device includes a built-in oscillator to reduce external components and an active-low OE input pin for hardware dimming and power saving.
  • Package: The PCA9632DP2,118 comes in a compact TSSOP16 package, which is suitable for space-constrained applications.

Applications

The PCA9632DP2,118 is versatile and can be used in a wide range of applications, including:

  • LED status indicators
  • Backlighting for LCD displays
  • Keypad backlights for mobile devices
  • Industrial control indicators
  • Fun and educational electronic projects

Conclusion

In summary, the PCA9632DP2,118 from NXP Semiconductors offers a high level of control and efficiency for driving LEDs. Its integration of an I2C-bus interface, along with the ability to individually adjust the brightness and blinking of each LED, makes it a highly adaptable solution for designers looking to enhance the visual impact of their applications. The product's low power consumption and small form factor further extend its suitability to a broad range of uses in both consumer and industrial markets.
