Product Overview: PCA9564BS,118

The PCA9564BS,118 is a sophisticated parallel bus to I2C-bus protocol converter designed by NXP Semiconductors. This integrated circuit (IC) is engineered to provide a seamless interface between standard parallel-bus microcontrollers and the serial I2C-bus, allowing for expanded system functionality with minimal hardware modifications.

Key Features

• I2C-Bus Interface: The device supports both 100 kHz (Standard-mode) and 400 kHz (Fast-mode) I2C-bus speeds, making it highly versatile for various applications.
• Parallel Bus Interface: With an 8-bit quasi-bidirectional data bus, the PCA9564BS,118 can easily connect to microcontrollers with a parallel bus, facilitating data exchange with I2C-bus compatible devices.
• Operating Voltage: The IC operates over a wide supply voltage range from 2.3V to 3.6V, accommodating different system power requirements.

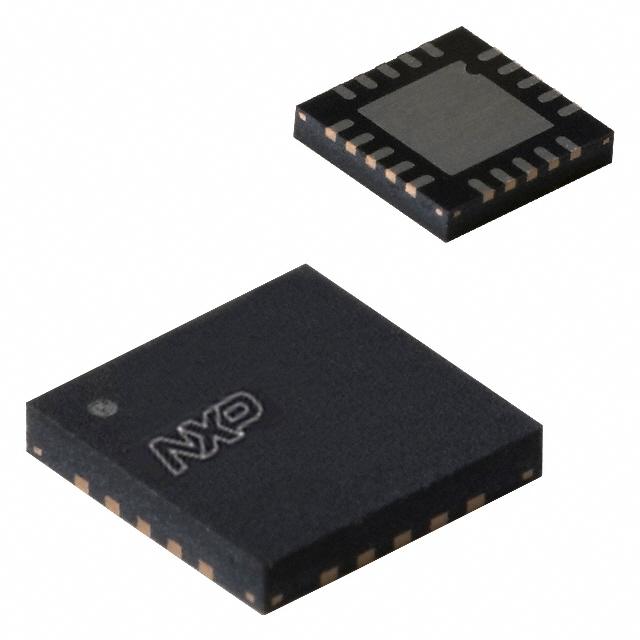

• Package: It comes in a compact HVQFN20 package, which is ideal for space-constrained applications.
• Interrupt Function: An interrupt output is available, which can be configured to alert the host controller of events on the I2C-bus, enhancing system responsiveness.

Applications

The PCA9564BS,118 is suited for a broad array of applications within the consumer electronics, automotive, and industrial markets. It is particularly useful in scenarios where an existing parallel-bus microcontroller needs to interface with an I2C-bus device without the need for extensive redesign. Typical applications include:

• Smartphones and tablets
• Automotive infotainment and navigation systems
• Industrial control systems
• Home automation and smart appliances

Reliability and Support

NXP Semiconductors is known for its commitment to quality and reliability. The PCA9564BS,118 is built to meet high industry standards, ensuring stable and reliable performance for critical applications. Additionally, NXP provides comprehensive technical support for their products, including datasheets, application notes, and design resources to assist developers in integrating this IC into their designs.

With its advanced features and flexibility, the PCA9564BS,118 from NXP Semiconductors is an excellent choice for designers looking to enhance their systems with I2C-bus connectivity while maintaining the use of legacy parallel-bus microcontrollers.
