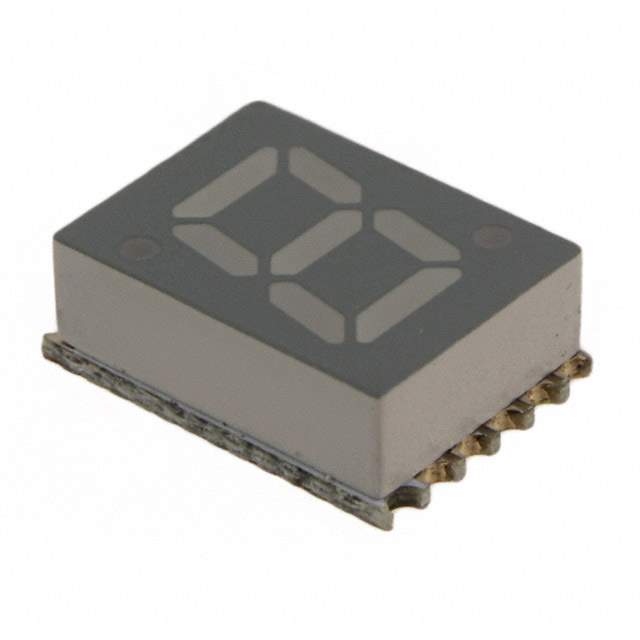

HDSM-281C Real Image
Same model may have multiple batches, images only for reference.

HDSM-281C

Part No HDSM-281C
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.28" SGL RED 12SMD / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads
Datasheet
HDSM-281C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Broadcom Limited
Package Tape & Reel
Number of Characters 1
Dimension 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)
Digit/Alpha Size 0.28" (7.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 7.5mcd
Wavelength - Peak 632nm
Power Dissipation (Max) 65mW
Package / Case 12-SMD, No Lead, 11 Pads
Base Product Number HDSM-281
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-2227-6,HDSM-281C-ND,516-2227-1,516-2227-2,HDSM281C
Standard Package 1,000
Win Source Part Number 1029399-HDSM-281C
Ultra Librarian 3D Model Ultra Librarian HDSM-281C CAD Model

Description

The Broadcom Limited 1029399-HDSM-281C is a 7-Segment Display Module - LED Character and Numeric that comes in a tape & reel package.

  • Package: Tape & Reel
  • Standard Package: 1,000
  • Millicandela Rating: 7.5mcd
  • Voltage - Forward (Vf) (Typ): 2V
  • Current - Test: 20mA
  • Wavelength - Peak: 632nm
  • Power Dissipation (Max): 65mW
  • Common: Anode
  • Dimension: 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)
  • Alternative Parts (Cross-Reference): VDMR10A0, VDMR10A1, LDS-SMHTA5604RISIT, ACSA03-41EWA-F01, ACSA03-41SRWA-F01, ACSA04-41SRWA-F01HDSM281C
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
