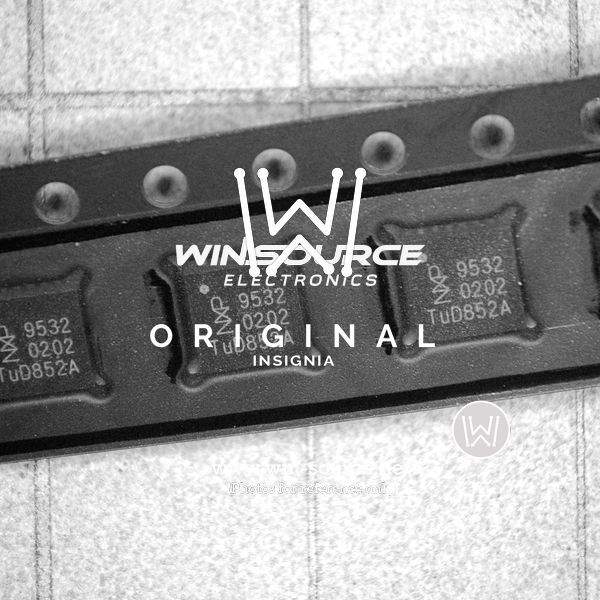

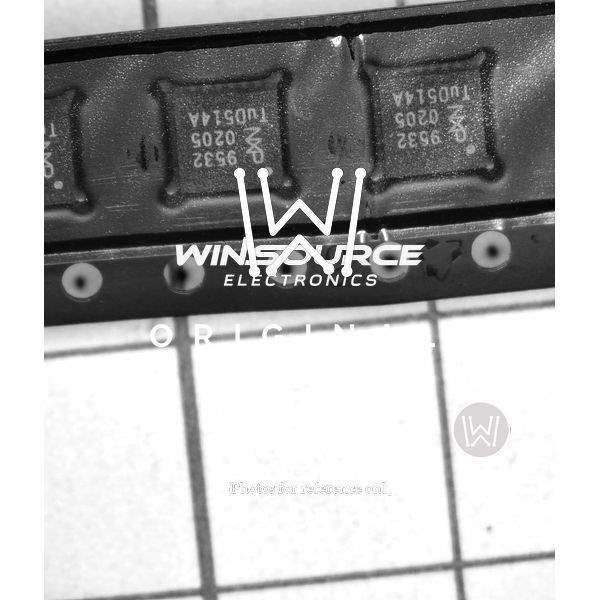

Product Overview: PCA9532BS by NXP

The PCA9532BS is a sophisticated LED dimmer and blinker device manufactured by NXP Semiconductors, designed to enhance the control and efficiency of lighting solutions in a wide array of applications. This integrated circuit (IC) is part of NXP's expansive portfolio of lighting and display management systems, offering a versatile approach to LED control.

Key Features

• I²C-Bus Interface: The PCA9532BS operates via an I²C-bus interface, allowing for simple integration into existing systems and providing a seamless communication channel for sending instructions to the IC.
• 16 LED Drivers: It includes 16 individual LED drivers, each capable of being programmed to on, off, or blinking states, providing extensive control over a broad range of lighting configurations.
• Programmable Blink Rate: Users can set the blink rate to their desired frequency, enabling custom visual effects or alerts.
• Adjustable Brightness: The brightness of each LED can be adjusted through pulse-width modulation (PWM), allowing for precise control over the intensity of the light emitted.
• Low Standby Current: The device is engineered to have a low standby current, which contributes to energy efficiency and extends the battery life in portable applications.

Applications

The PCA9532BS is ideal for a variety of applications where LED control is paramount. This includes:

• Server and telecom infrastructure
• Industrial control indicators
• Backlighting for LCD panels
• Status or diagnostic indicators
• Home automation systems

Technical Specifications

The PCA9532BS operates at a supply voltage range of 2.3V to 5.5V, making it suitable for both 3.3V and 5V systems. It is available in a 24-pin HVQFN package, ensuring a compact footprint for space-constrained applications.

Conclusion

The PCA9532BS from NXP stands out as a reliable and flexible solution for advanced LED control. Its combination of I²C interface, multiple LED drivers, programmable blink rates, and adjustable brightness levels makes it a versatile choice for designers looking to enhance the functionality and efficiency of their lighting systems.
