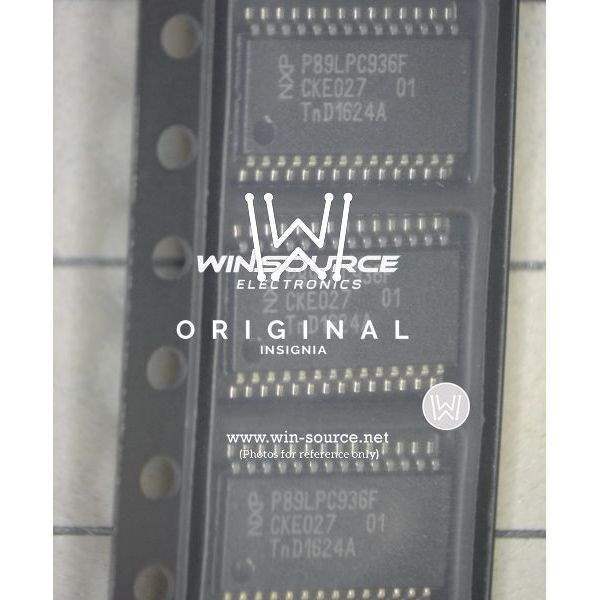

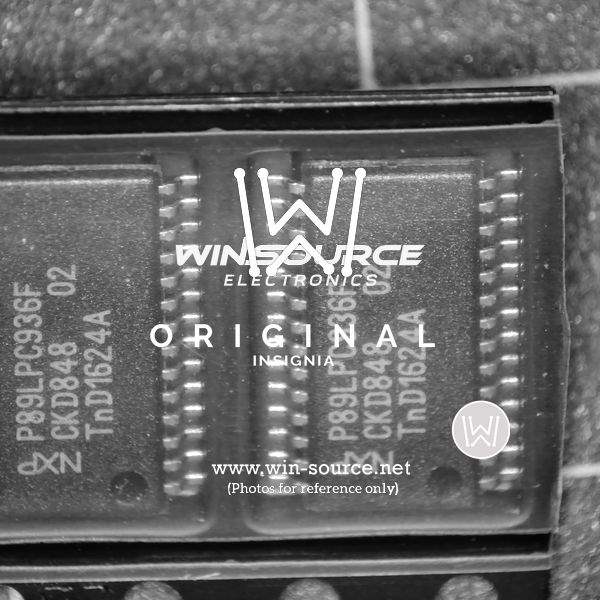

Introducing the NXP P89LPC936FDH Microcontroller

The NXP P89LPC936FDH is a highly integrated, low-power microcontroller that is part of NXP's 89LPC9xx family of devices. This 8-bit microcontroller is designed to deliver high performance and a rich feature set in a small footprint, making it ideal for a wide range of applications in consumer electronics, industrial control, and automation.

Key Features

• Advanced 8-bit microcontroller: Based on a high-performance processor architecture, the P89LPC936FDH operates at up to 18 MHz with a wide operating voltage range from 2.4V to 3.6V.
• Enhanced Memory: Equipped with 16KB of on-chip flash memory and 768 bytes of RAM, this microcontroller offers ample space for complex applications and data handling.
• Flexible Peripherals: The device includes a variety of peripherals such as two 16-bit timers, a 10-bit ADC with 8 multiplexed inputs, two enhanced UARTs, and an SPI interface, providing versatile options for interfacing with other devices and sensors.
• In-System Programming (ISP) and In-Application Programming (IAP): These features allow for firmware updates in the field without requiring additional hardware, ensuring easy maintenance and upgrades.
• Multiple Oscillator Options: The P89LPC936FDH supports a crystal oscillator, an internal RC oscillator, and a PLL for clock frequency multiplication, offering flexibility in choosing the clock source depending on power and precision requirements.
• Power Management: With power-saving modes such as Idle and Power-down, this microcontroller can optimize power consumption for battery-powered applications.

Robust Design and Security

The P89LPC936FDH is designed with reliability in mind, featuring a watchdog timer to ensure system stability. Additionally, the device includes security mechanisms to protect the intellectual property of the firmware, such as a 64-bit unique device serial number and 128-bit user-programmable OTP (One-Time Programmable) memory for secure key storage.

Applications

With its powerful feature set and low-power operation, the P89LPC936FDH is well-suited for a variety of applications, including:

• Industrial control systems
• Home automation
• Battery management systems
• Alarm systems
• Small-scale robotics

The NXP P89LPC936FDH microcontroller is a versatile and efficient solution for designers looking to enhance their embedded systems with a compact, feature-rich MCU. Its blend of performance, memory, and peripherals, coupled with ease of use and power efficiency, makes it an excellent choice for a multitude of embedded applications.
