Same model may have multiple batches, images only for reference.

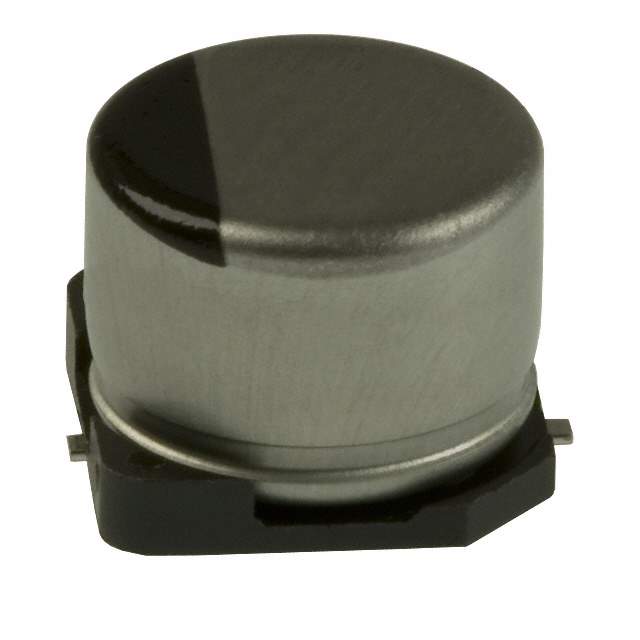

EEE-1JA220UP Real Image
Same model may have multiple batches, images only for reference.

EEE-1JA220UP

Part No EEE-1JA220UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 68 mA @ 10 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-1JA
Other Names EEE1JA220UP,PCE3944TR,PCE3944DKR,PCE3944CT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307303-EEE-1JA220UP
Ultra Librarian 3D Model Ultra Librarian EEE-1JA220UP CAD Model

Description

The Panasonic Electronic Components EEE-1JA220UP is an aluminum electrolytic capacitor that belongs to the category of capacitors.

  • Capacitance: 22 microfarads
  • Voltage Rating: 63 volts
  • AEC-Q200 Rated: Yes
  • MSL Level: 1 (unlimited)
  • Lifetime: 2000 hours @ 85 degrees Celsius
