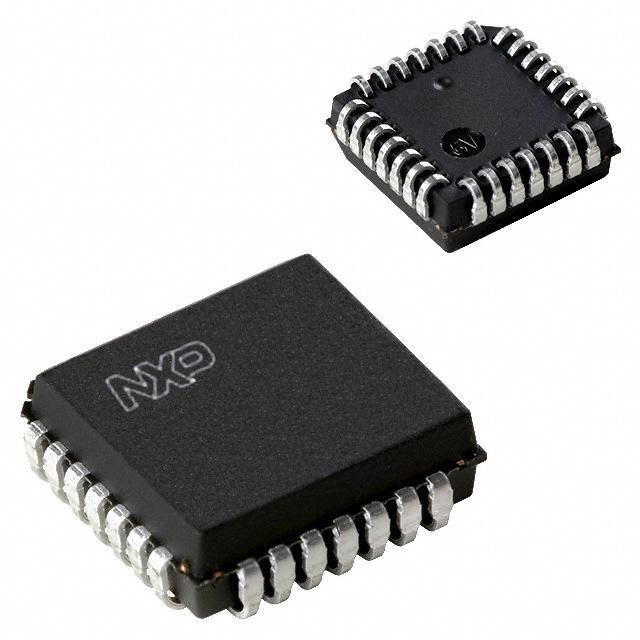

Product Overview: NXP P89LPC932A1FA Microcontroller
The NXP P89LPC932A1FA is a highly integrated microcontroller that is part of the LPC900 family. This 8-bit device is designed for low power and high-performance applications that require advanced communication capabilities and robust I/O features. It is based on a high-performance processor architecture that operates at a maximum frequency of 18 MHz.
Key Features:
-
CPU: 8-bit microcontroller with accelerated two-clock 80C51 core, which provides faster processing capabilities compared to standard 80C51 devices at the same clock frequency.
-
Memory: Equipped with 8 KB of flash memory and 512 bytes of RAM, the P89LPC932A1FA allows for efficient code and data storage.
-
Digital Peripherals: Includes 32 I/O pins, multiple 16-bit timers, and an enhanced UART for serial communication.
-
Analog Features: Features an 8-channel 10-bit Analog-to-Digital Converter (ADC) for interfacing with analog sensors and inputs.
-
On-Chip Oscillator: Comes with an integrated oscillator that supports a range of frequencies, reducing the need for external components.
-
In-System Programming (ISP): Supports ISP and IAP (In-Application Programming) for easy firmware updates and application changes without the need for additional programming devices.
-
Power Management: Incorporates power control modes including Idle and Power-down modes to optimize power consumption.
-
Security: Provides a unique device serial number for identification and supports code protection to prevent unauthorized access to the firmware.
Applications:
The P89LPC932A1FA is suitable for a wide range of applications such as industrial control, consumer electronics, alarm systems, and battery-powered devices. Its robust set of features and ease of use make it an ideal choice for designers looking for a versatile and reliable microcontroller solution.
