Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Core Processor PowerPC e500v2
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 800MHz
RAM Controllers DDR2, DDR3
Graphics Acceleration No
Ethernet 10/100/1000Mbps (3)
USB USB 2.0 + PHY (2)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating 0°C ~ 125°C

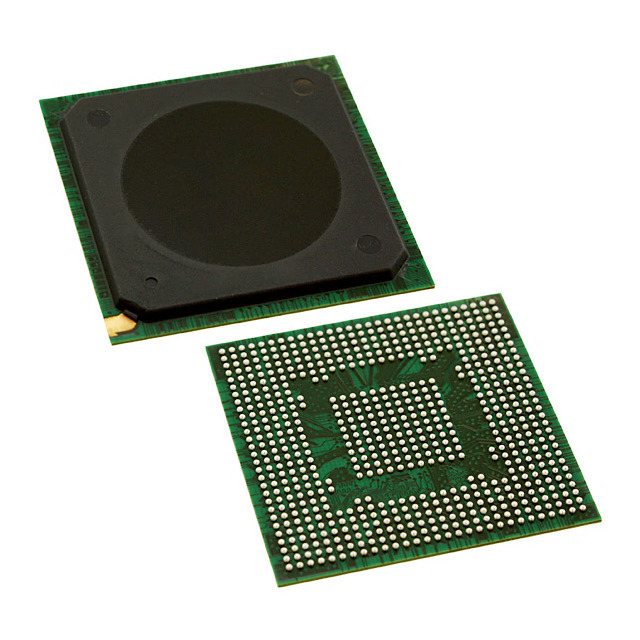

Manufacturer Package 689-BBGA Exposed Pad
Supplier Device Package 689-TEPBGA II (31x31)
Additional Interfaces DUART, I2C, MMC/SD, SPI
Family Part Number P1020
Manufacturer Pack Quantity 27
MSL Level 3 (168 Hours)
Win Source Part Number 715684-P1020NSN2DFB
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian P1020NSN2DFB CAD Model

Description

Introducing the NXP P1020NSN2DFB Processor

The NXP P1020NSN2DFB is a high-performance, power-efficient processor designed to meet the evolving demands of embedded computing. This processor is part of NXP's QorIQ P1 series, which is renowned for delivering a versatile and scalable multicore platform. The P1020NSN2DFB is particularly well-suited for applications in the networking, telecommunications, industrial control, and aerospace sectors.

Key Features:

  • Integrated Dual-Core Processor: At the heart of the P1020NSN2DFB lies a dual-core Power Architecture e500 core, each running at speeds up to 800MHz. This offers a balance of computing performance and power efficiency, making it an ideal solution for systems where thermal management and energy consumption are critical.
  • Advanced Connectivity: This processor comes equipped with a rich set of interfaces, including Gigabit Ethernet controllers, USB 2.0 ports, and PCI Express lanes. These features enable high-speed data transfers and connectivity with a wide range of peripherals and network infrastructures.
  • Enhanced Security: Security is a top priority in modern electronics, and the P1020NSN2DFB addresses this with an integrated security engine. This engine supports a variety of encryption and hashing algorithms to ensure secure data transmission and storage.
  • DDR3/DDR3L Memory Support: The processor supports DDR3 and DDR3L memory, providing designers with flexibility in choosing memory solutions that meet their system cost and performance requirements.
  • Low-Power Operation: Designed with energy efficiency in mind, the P1020NSN2DFB includes power-saving features that reduce overall power consumption, making it suitable for green and energy-sensitive applications.

Applications:

The versatile nature of the NXP P1020NSN2DFB processor allows it to be integrated into a variety of platforms, including:

  • Enterprise and home networking equipment such as routers, switches, and gateways
  • Industrial control systems and automation
  • Wireless infrastructure and base station management
  • Embedded computing for aerospace and defense applications

Whether you're developing advanced networking equipment or robust industrial systems, the NXP P1020NSN2DFB processor provides a reliable foundation that can help streamline your development process and bring high-performance, secure, and efficient solutions to market.
