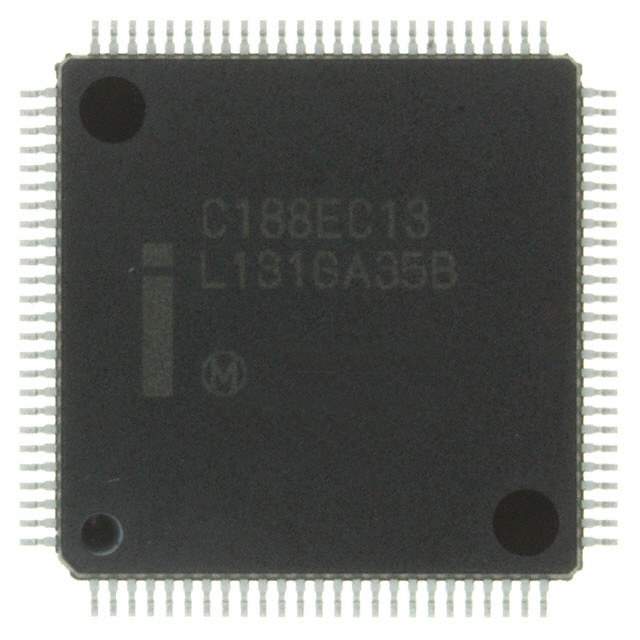

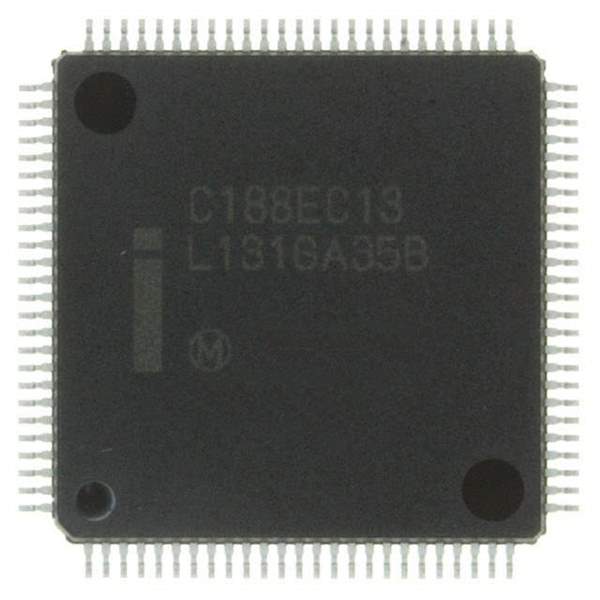

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intel
Series i186
Packaging Tray
Part Status Obsolete(EOL)
Core Processor 80C186
Number of Cores/Bus Width 1 Core, 16-Bit
Speed 13MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Operating Temperature Range 0°C ~ 70°C (TA)
Package 100-BFQFP
Manufacturer Package 100-SQFP
Additional Interfaces Serial Communications Unit (SCU)
Win Source Part Number 793878-SB80C188EC13
Popularity Medium
Supply and Demand Status Limited
Family Name 80C188EC
Introduction Date May 01, 1996
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SB80C188EC13 CAD Model

Description

The Intel i186 series processor is a 16-bit core processor.

  • Speed: 13MHz
  • Cores: 1
  • RAM Controller: DRAM
  • Interface: Serial Communications Unit (SCU)
  • Package: 100-BFQFP
  • Operating Temperature Range: 0°C to 70°C (TA)
  • Status: Obsolete, End-of-Life (EOL)
  • Alternatives: YW80C188EC20, SB80C188EC20
