Product Overview: NX3L2267GU,115

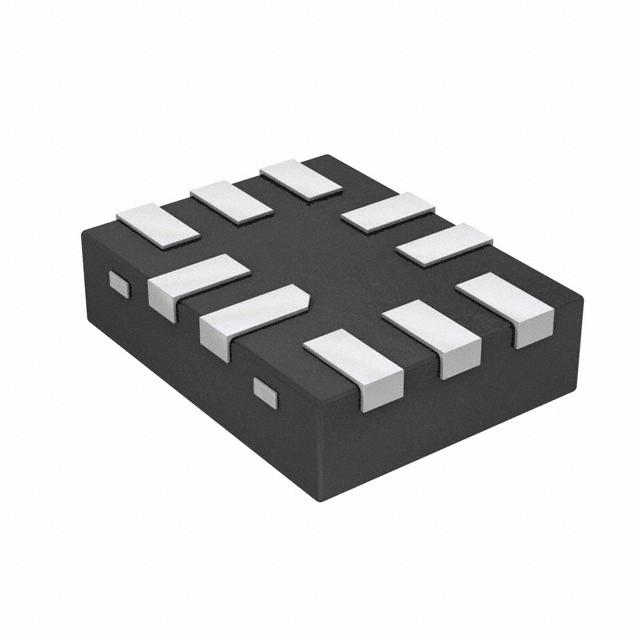

The NX3L2267GU,115 is a high-performance, dual single-pole double-throw analog switch from NXP Semiconductors, designed to deliver exceptional signal switching capabilities for a wide range of applications. This advanced switch is housed in a compact, leadless XQFN14 package, making it an ideal choice for space-constrained designs.

Key Features

• Low On-Resistance: The NX3L2267GU,115 boasts a low on-resistance of typically 0.37 ohms at 4.5V, which ensures minimal signal distortion and power loss across the switch.
• Wide Voltage Range: It operates over a wide supply voltage range from 1.65V to 5.5V, making it versatile for use in various circuit configurations.
• High-Speed Switching: Fast switching speeds characterize this device, making it suitable for high-frequency applications.
• Low Power Consumption: The switch's design prioritizes energy efficiency, resulting in low power consumption and extended battery life in portable devices.
• ESD Protection: Integrated electrostatic discharge (ESD) protection circuits safeguard the device against static electricity damage, ensuring reliability and longevity.

Applications

The NX3L2267GU,115 is engineered to meet the demands of a variety of applications, including but not limited to:

• Mobile phones and personal media players
• Signal routing in audio, video, and data communications
• Computer peripherals and servers
• Measurement and test equipment

Quality and Reliability

NXP Semiconductors is committed to delivering products that exceed industry standards for quality and reliability. The NX3L2267GU,115 is manufactured using a robust silicon process, ensuring high performance and stability over its operational lifespan. Each device undergoes stringent testing and quality control measures to guarantee that it meets NXP's exacting specifications.

Environmental Compliance

The NX3L2267GU,115 is produced with a focus on environmental sustainability. It complies with various international standards, including RoHS, ensuring that it is free from hazardous substances and suitable for use in eco-friendly products.
