The NXP MPC8309VMADDCA is a power-efficient and cost-effective processor designed to meet the needs of a wide range of applications. This processor is part of the PowerQUICC II Pro family and is based on the e300 core, which is built on Power Architecture technology. The MPC8309VMADDCA is well-suited for networking, industrial control, and smart energy solutions, among other applications.
Key Features
- Core: The processor features an e300c3 core with speeds up to 266 MHz, providing a balanced performance for embedded systems.
- Integrated Security: It includes an enhanced SEC (Security Engine) 2.2 that supports a variety of encryption and security protocols, ensuring secure data transactions.
- Memory Support: The device supports DDR2 and DDR3 SDRAM memory, giving designers flexibility in choosing memory solutions to match their system requirements.
- Connectivity: It offers a rich set of connectivity options including Dual integrated 10/100/1000 Ethernet controllers, USB 2.0, and PCI Express interfaces.
- Low Power Consumption: The processor is designed for low power operation, which is critical for applications where energy efficiency is a priority.
Applications
The MPC8309VMADDCA is versatile and can be employed in various applications such as:
- Networking equipment (e.g., gateways, routers, and switches)
- Industrial control systems
- Smart energy management systems
- Printers and other imaging devices
- Home automation and security systems
Technical Specifications
Attribute
Description
CPU Core
e300c3 (Power Architecture)
Maximum Frequency
266 MHz
Security Engine
Version 2.2
Memory Types
DDR2, DDR3 SDRAM
Networking Interfaces
Dual 10/100/1000 Ethernet
Other Interfaces
USB 2.0, PCI Express

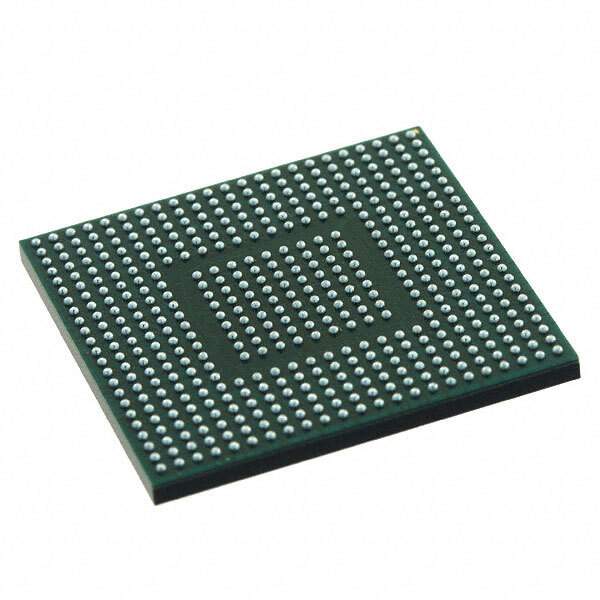

Package
MAPBGA-369
Overall, the NXP MPC8309VMADDCA processor delivers reliable performance and connectivity, making it a smart choice for developers looking for a cost-effective yet robust solution for their embedded systems.
