The NXP MK20DN128VMP5 microcontroller is a high-performance, low-power, 32-bit ARM Cortex-M4 based MCU designed to cater to a wide range of embedded applications. This device is part of the Kinetis K20 family and is particularly suitable for smart metering, industrial control, medical devices, and IoT applications where efficiency and processing power are crucial.

Key Features

• CPU: ARM Cortex-M4 running at up to 50MHz, with a Floating Point Unit (FPU) for enhanced computational capabilities.
• Memory: Equipped with 128KB of flash memory and 16KB of SRAM, providing ample space for complex applications and data storage.
• Communication Interfaces: Includes a variety of communication features such as multiple SPI, I2C, and UART interfaces, as well as USB 2.0 Full-Speed and CAN modules, facilitating versatile peripheral connections.
• Digital and Analog Peripherals: Offers a range of peripherals, including a 16-bit ADC with multiple channels, a 12-bit DAC, and several timers and PWM channels for precise control operations.
• Operating Voltage: Supports a wide range of operating voltages from 1.71V to 3.6V, enabling use in low-power applications.

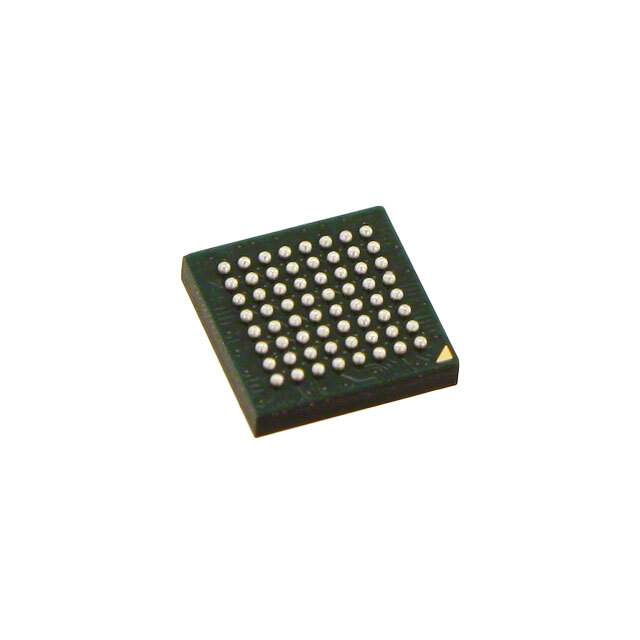

• Package: Comes in a MAPBGA-64 packaging, which is ideal for space-constrained applications.

Advanced Security

The MK20DN128VMP5 microcontroller incorporates advanced security features such as hardware CRC modules to ensure data integrity, and a Random Number Generator (RNG) for secure data encryption, making it a reliable choice for applications that require robust security measures.

Energy Efficiency

This microcontroller is designed with energy efficiency in mind. It features flexible low-power modes, including a deep sleep mode, which significantly reduces power consumption when the device is inactive, while allowing for fast wake-up times when required.

Development Support

NXP provides comprehensive development support for the MK20DN128VMP5 with a range of software tools, libraries, and development kits to accelerate the design process. The MCU is supported by NXP's MCUXpresso IDE and software development kit (SDK), as well as third-party development environments, simplifying the task of creating advanced applications on this platform.
